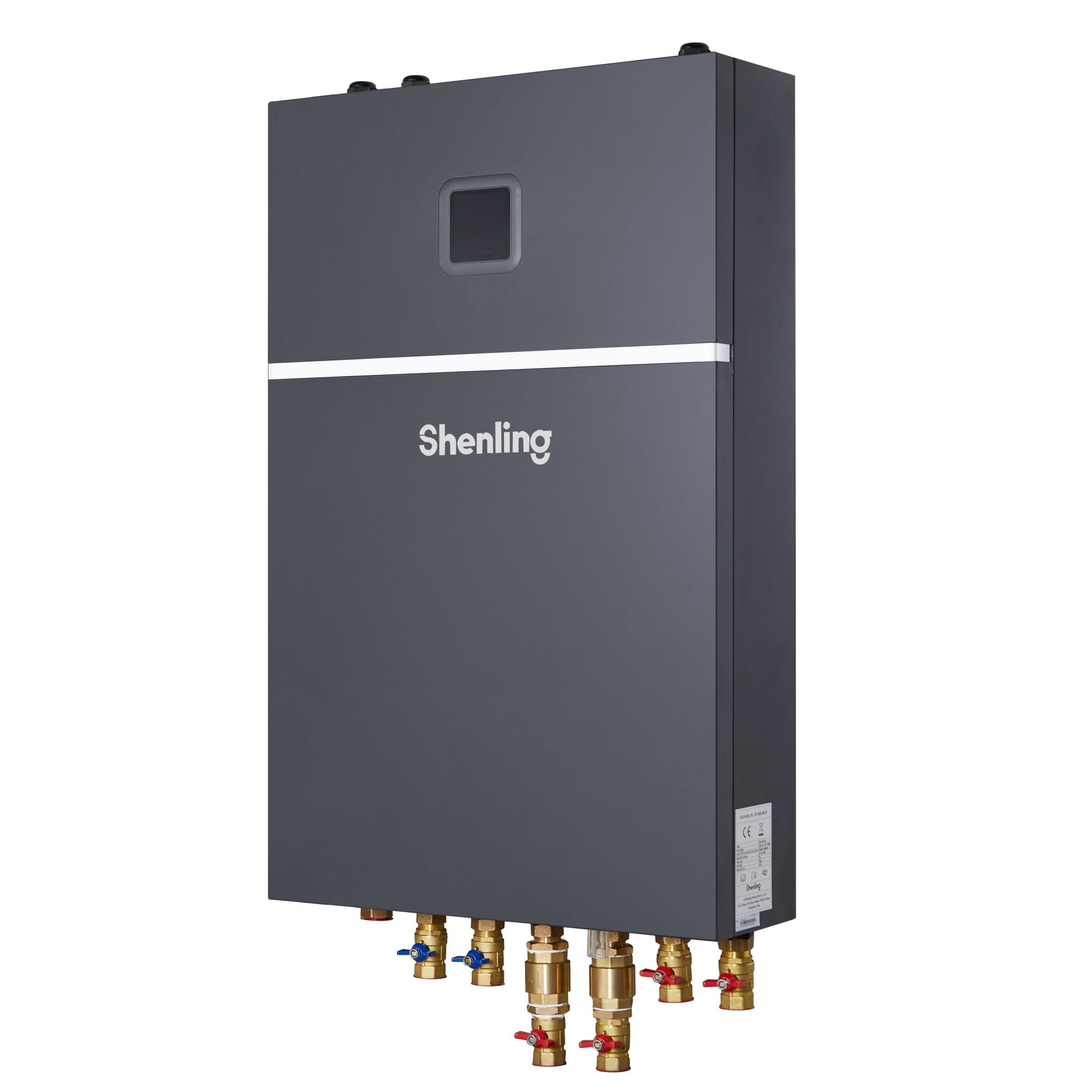

The hydrobox serves as a crucial component in providing a sustainable and energy-efficient means of meeting the hot and cold water needs for various hydronic solutions. With its all-electric operation, it not only ensures efficient heat exchange but also contributes to reducing environmental impact. By integrating with Shenling’s heat pump systems, it unlocks expanded possibilities for indoor unit configurations, enabling customized and optimized hydronic setups for different applications. Whether it’s for residential, commercial, or industrial settings, the combination of Shenling’s hydrobox and heat pump systems offers a reliable and efficient solution for achieving comfortable indoor environments while minimizing energy consumption.

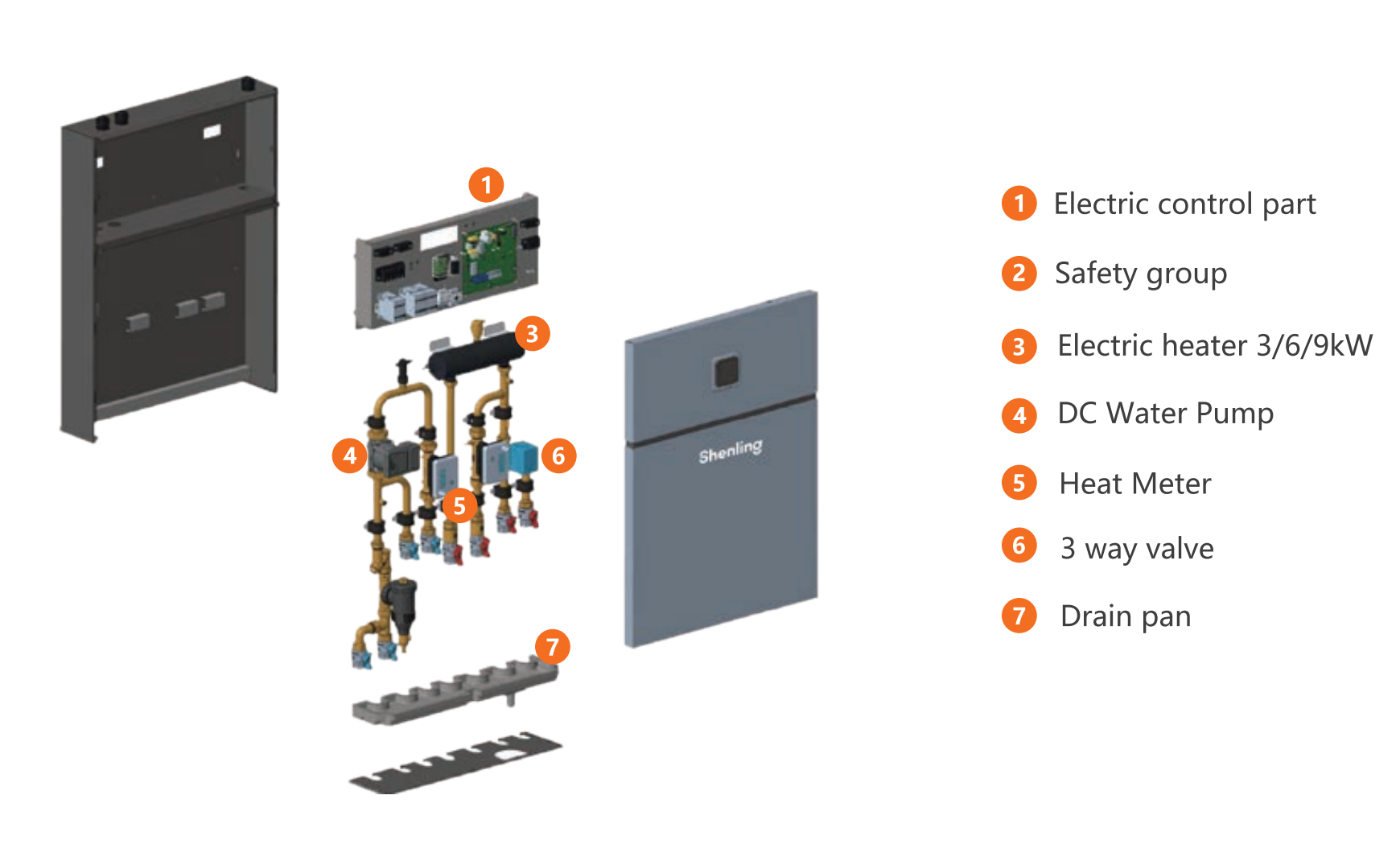

All electrical components are prewired to the integrated control at the factory, keeping the level of cabling effort required on site to an absolute minimum.
The built in heat pump control is truly impressive with its high-resolution, capacitive LCD touch display with an intuitive and straightforward menu navigation system with self-explanatory icons and innovative overview screens.| Model | HM90/DM | |
| Power Supply | V/Ph/Hz | 380-415/3/50 |
| Space heating water temp.range | ℃ | 25~75 |
| Space cooling water temp.range | ℃ | 5~25 |
| Operation ambient temp.range | ℃ | -25~43 |
| Waterconnection | inch | 1 |
| Water pressure(Max) | bar | 3 |
| Water pump type | / | Shimge/DC inveter/9m head |
| Water flow swtich | L/min | 6 |
| Electric heater | kW | 3/6/9kW3Ph 3 steps |
| 3 way valve | inch | 1 |
| Sound pressure level(m) | dB(A) | 28 |
| Net dimension(LxWxH | mm | 1200*620*200 |
| Package dimension(LxWxH) | mm | 1275*710*255 |
