Energy class: A+++
R290 refrigerant
Space heating+Cooling+DHW
Min operation ambient temp. -25℃
Max outlet water temp. 75℃
Full colour LCD display controller
Wifi smart control
Smart grid
Disinfection
Power consumption counting
Shenling R290 Air Source Heat Pump has energy class A+++ and the minimum operation ambient temperature is -25℃， and the maximum outlet water temperature is 75℃. It provides heating, cooling, and domestic hot water functions together to meet domestic families’ needs. It has MCS, Keymark, CE, and so on certifications. By incorporating the full-color LCD display controller, wifi smart control, smart grid, and so on.

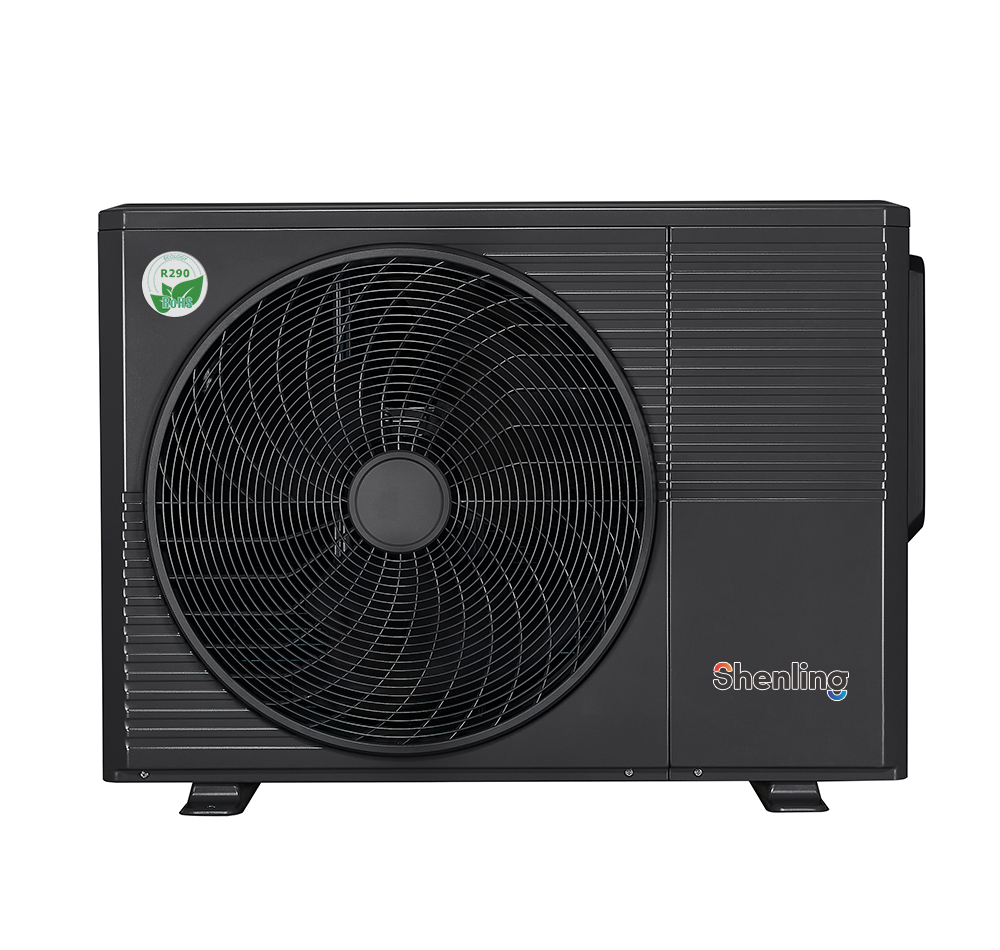

R290 air to water heat pump
R290 Refrigerant
In response to the critical need to reduce carbon emissions and mitigate global warming, Shenling is proud to introduce its innovative ThermaX Series of R290 heat pumps. These next-generation systems leverage the power of R290 refrigerant, recognized as an industry leader for its minimal environmental impact and exceptional efficiency.
R290 Refrigerant: A Sustainable Choice
R290 refrigerant boasts an ultra-low Global Warming Potential (GWP), a significant improvement compared to traditional refrigerants. This translates to a dramatic reduction in greenhouse gas emissions released by heating and cooling systems. By adopting R290 heat pumps, Shenling is actively contributing to the global effort towards carbon neutrality.
Beyond its environmental benefits, the ThermaX Series delivers outstanding efficiency. R290 refrigerant allows these heat pumps to achieve superior performance, translating to lower energy consumption and operational costs for you.
Straightforwardly compatible with various architectures
Improved processing precision
Enhanced reliability and consistency
Increased production efficiency and delivery date assurance
Reduced floor space requirement
Increased flexibility in installation
Higher container loading capacity
Space heating:
The system can provide space heating efficiently even in extremely cold conditions, with a minimum ambient temperature of -25℃.
The outlet water can reach a temperature of 70℃ even when the ambient temperature is as low as -15℃.
Space cooling:
The cooling function is available from a relatively low ambient temperature of -5℃.
Domestic Hot Water (DHW):
The system of the R290 heat pump is capable of providing domestic hot water even in very cold conditions, with a minimum ambient temperature of -25℃.
When the electric booster heater is used, the maximum achievable DHW temperature is 80℃.
When the silent mode is activated, Shenling R290 heat pump system will reduce the frequency of the compressor and fan motor. As a result, the operating sound will be significantly reduced, though there will be a slight decrease in capacity.
Smart Grid Integration:
The R290 air source heat pump is equipped with smart grid integration capabilities, allowing it to recognize different electrical signals from the grid and adjust its operations accordingly. By identifying peak and valley prices of power supply, the R290 heat pump prioritizes the production of domestic hot water during low-price periods while setting a maximum output limit during high-price periods.
Intelligent Defrosting:
Shenling R290 air source heat pump utilizes advanced smart defrosting technology to accurately determine the optimal defrosting time based on the real frosting condition. This intelligent defrosting process reduces energy consumption in low-temperature environments and effectively prevents defrosting errors.
Anti-freeze Protection:
R290 dc inverter heat pump incorporates a comprehensive anti-freeze protection system with three layers of safeguards. Initially, the water pump is activated when low ambient and water temperatures are detected. If the situation remains unresolved, the heat pump will be initiated. In the rare event of a heat pump failure, the electric booster heater will be activated if it is equipped in the system.

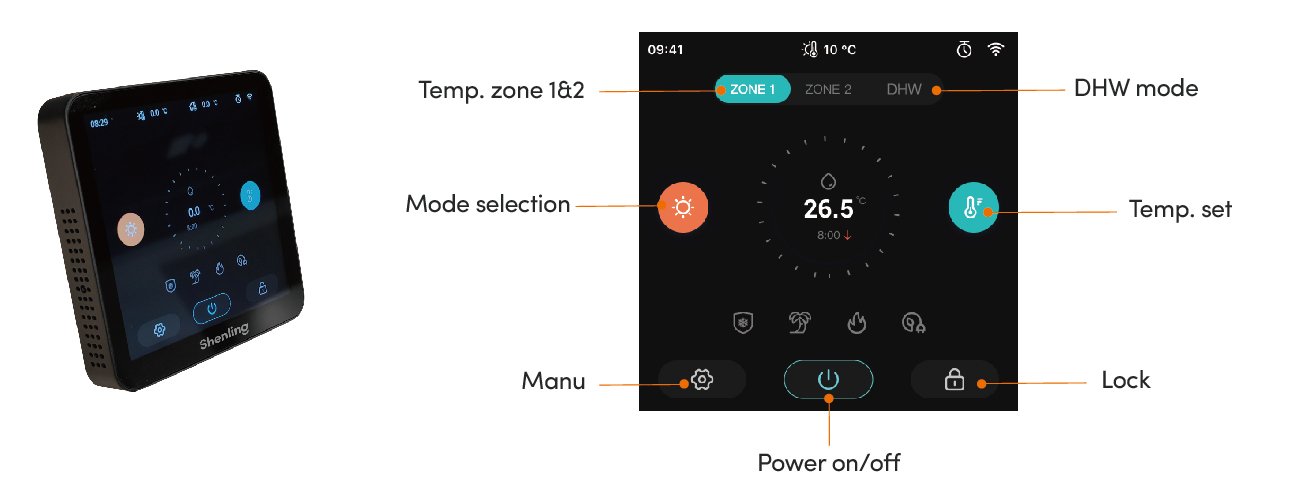

Wired controller
Function Standard wifi function for remote control
SD card program upgrade, easy for maintenance
User-friendly interface, easy to operate
Appearance
Aesthetic design, simple but not easy
Obsidian black colour, high-end and elegant
14mm ultra-thin design, small and exquisite
Installation
With installation backplane, installed independently, or compatible with 86 threading box
Easy to read and set
Dual temperature zone control
Schedule function and weekly/daily timer
Silent mode
Holiday mode
Remote monitoring technology
Multi-language control
Key components built-in
R290 heat pump built in system
R290 FULL DC INVERTER MONOBLOC HEAT PUMP
For Space Heating, Cooling and DHW
| Model | HPM-V60W/R3 | HPM-V90W/R3 | HPM-V120W/R3 | HPM-V150W/R3 | HPM-V120W/SR3 | HPM-V150W/SR3 | |||
| Power Supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | ||||||
| Heating1 | Capacity | kW | 6.45 | 9.00 | 12.00 | 15.00 | 12.00 | 15.00 | |
| Rated Input | kW | 1.32 | 1.86 | 2.53 | 3.33 | 2.53 | 3.33 | ||
| COP | / | 4.90 | 4.85 | 4.75 | 4.50 | 4.75 | 4.50 | ||
| Heating2 | Capacity | kW | 6.65 | 9.00 | 12.00 | 15.00 | 12.00 | 15.00 | |
| Rated Input | kW | 1.73 | 2.43 | 3.33 | 4.29 | 3.33 | 4.29 | ||
| COP | / | 3.85 | 3.70 | 3.60 | 3.50 | 3.60 | 3.50 | ||
| Heating3 | Capacity | kW | 6.30 | 9.00 | 12.00 | 15.00 | 12.00 | 15.00 | |
| Rated Input | kW | 1.97 | 2.86 | 4.00 | 5.26 | 4.00 | 5.26 | ||
| COP | / | 3.20 | 3.15 | 3.00 | 2.85 | 3.00 | 2.85 | ||
| Cooling4 | Capacity | kW | 6.50 | 9.00 | 12.00 | 15.00 | 12.00 | 15.00 | |
| Rated Input | kW | 1.31 | 1.91 | 2.61 | 3.57 | 2.61 | 3.57 | ||
| EER | / | 4.95 | 4.70 | 4.60 | 4.20 | 4.60 | 4.20 | ||
| Cooling5 | Capacity | kW | 6.00 | 9.00 | 12.00 | 14.00 | 12.00 | 14.00 | |
| Rated Input | kW | 1.90 | 2.95 | 4.00 | 4.91 | 4.00 | 4.91 | ||
| EER | / | 3.15 | 3.05 | 3.00 | 2.85 | 3.00 | 2.85 | ||
| Seasonal space heating energy efficiency class6 | Outlet water temp. at 35℃ | / | A+++ | ||||||
| Outlet water temp. at 55℃ | / | A++ | |||||||
| Refrigerant | Type(GWP) | / | R290(3) | ||||||
| Charged volume | kg | 0.6 | 0.85 | 1.2 | |||||
| Sound power Level7(1m) | dB | 64 | 67 | 69 | 71 | 69 | 71 | ||
| Sound pressure Level7(1m) | dB(A) | 50 | 53 | 55 | 57 | 55 | 57 | ||
| Net dimension( W×D×H ) | mm | 1000*450*725 | 1080*520*857 | ||||||
| Packaged dimension( W×D×H ) | mm | 1110*475*870 | 1180*560*1005 | ||||||
| Net weight/Gross weight | kg | 75/89 | 104/120 | 115/131 | 124/140 | ||||
| Water piping connection | mm | R1″ | R1-1/4″ | ||||||
| Ambient temp. range | Cooling | ℃ | -5～43 | ||||||
| Heating | ℃ | -25～35 | |||||||
| Domestic hot water | ℃ | -25～43 | |||||||
| Outlet water temp. setting range | Cooling | ℃ | 5～25 | ||||||
| Heating | ℃ | 25～75 | |||||||
| Domestic hot water | ℃ | 20～70 | |||||||
| Backup electric heater8 | Optional installation | kW | 3/9 | 3/9 | 3/9 | 3/9 | 3/9 | 3/9 | |
| Capacity steps | / | 1/3 | 1/3 | 1/3 | 1/3 | 1/3 | 1/3 | ||
| Power Supply | 3kW | V/Ph/Hz | 220-240/1/50 | ||||||
| 9kW | 380-415/3/50 | ||||||||
| Notes： 1.Outdoor air temperature7℃ DB，6℃ WB；Water inlet 30℃，Water outlet35℃； 2.Outdoor air temperature7℃ DB，6℃ WB；Water inlet 40℃，Water outlet45℃； 3.Outdoor air temperature7℃ DB，6℃ WB；Water inlet 47℃，Water outlet55℃； 4.Outdoor air temperature35℃ DB；Water inlet 23℃，Water outlet18℃； 5.Outdoor air temperature35℃ DB；Water inlet12℃，Water outlet7℃； 6.Seasonal space heating energy efficiency class testes in average climate general conditions. 7.Testing standard: EN12102-1. 8.Backup electric heater is external installation. 9.Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014. | |||||||||
