Energy class: A+++
R32 refrigerant
Space heating+Cooling+DHW
Min operation ambient temp. -25℃
Max outlet water temp. 65℃
Full colour LCD display controller
Wifi smart control
Smart grid
Disinfection
Power consumption counting

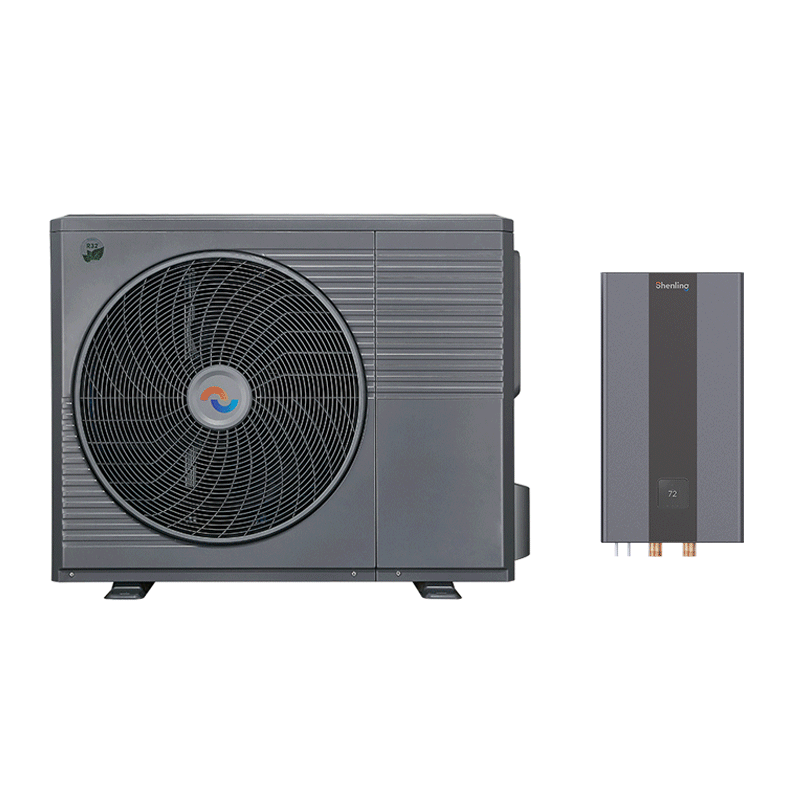

The working principle of split heat pump water heater systems is exactly the same as that of monobloc heat pump system appliances. The notable difference is that the refrigerant circuit is divided into a compact indoor unit and an outdoor unit. They often also already contain a buffer cylinder for DHW heating or central heating backup.
Aesthetic industrial design, easy to integrate with the architectures.
Mould shaped shell and structure plate with higher processing precision;
Higher reliability and consistency;
High production efficiency and guaranteed delivery date.
Single fan & compact design, smaller floor area, higher installation freedom, and larger container loading quantity.
ȵʂ. average up to A+++ at 35℃
ȵʂ. average up to A++ 55
Equipped with direct currency inverter compressor with a wide working frequency range, an electronic expansion valve adjusting various loads and flows with higher precision, steplessly control experience effected by direct currency frequency conversion fan, a direct currency frequency conversion water pump circulation, and a plate heating exchanger with higher efficiency and smaller volume.
The split heat pump water heater’s pressure distribution at trailing edge of the blade is changed by trailing edge notch pattern, the wake shedding vortex dimension is minimized by the Suction surface concave design, and the thickening edge setting strength the blade.
● Outdoor unit sound resistant design
Completed set of mould design, simulating compressor vibration, CFD and airflow under various frequencies, and 3-layered environmental protection sound insulation and absorbing materials.
Mini split heat pump system has wi-fi function/SD card program upgrade/ colorized LCD touch screen/14mm ultra-slim design/snap fitting

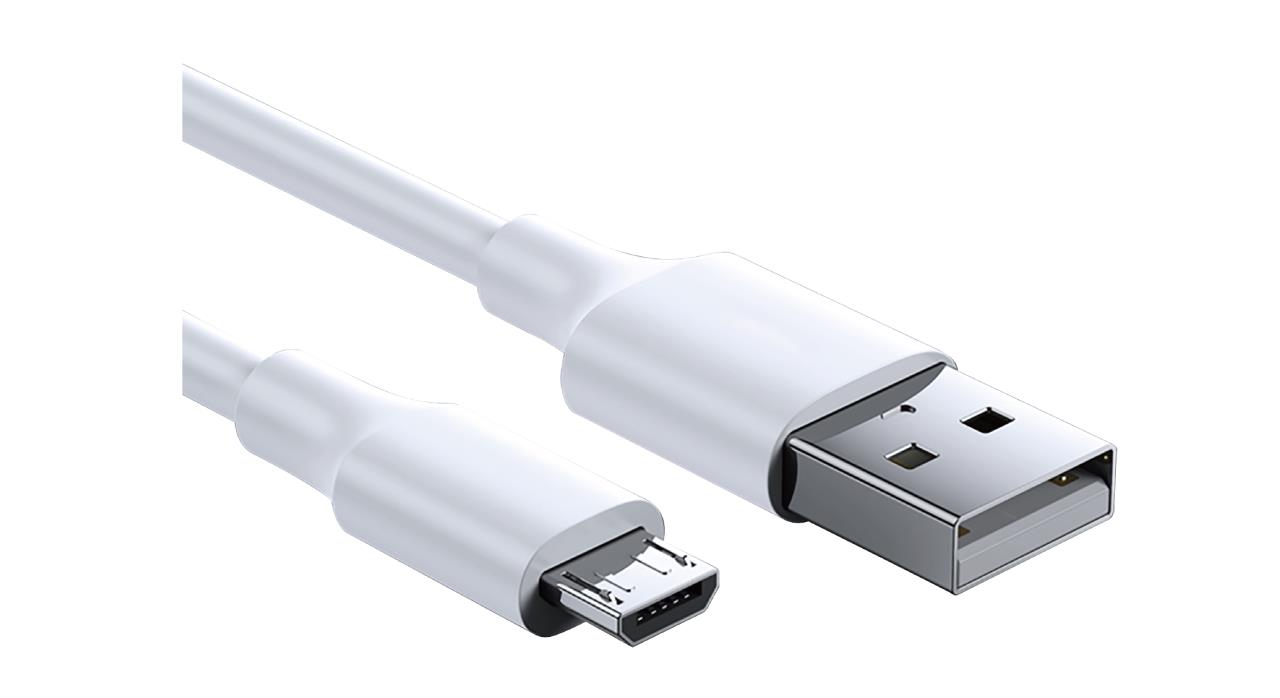

Program upgrade of indoor unit and outdoor unit of best mini split heat pump automatically enable to effect by only a laptop and a micro USB cable.
Dual-zone control/Schedule and time setting/Remote monitoring technology/5-language switch(English/Germany/French/Italian/Polish)
UnderWeather temperature curing, water temperature automatically changes with ambient temperature.
ThermaX best mini split heat pump for cold weather controls double temperature zones by supplying various water temperature to fan coil and floor at the same time, realizing optimum comfort.

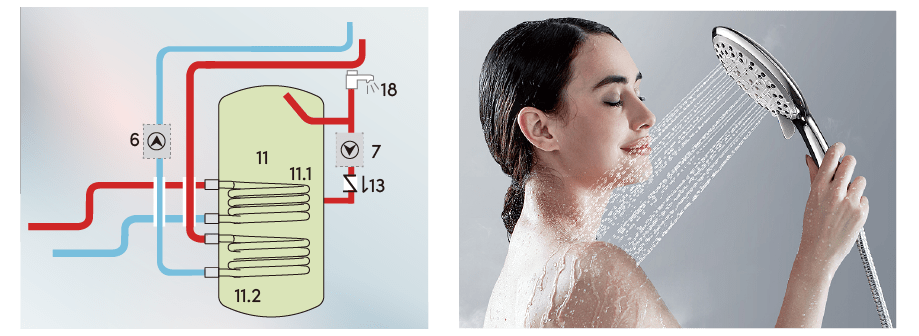

The water of split heat pump system is heated and circulated into pipeline, enabling users use hot water directly without any waiting for the cold released and wasted.
The timer runs according to the mode and temperature setting after the mini split heat pump system is on.
Solely connect cold climate mini split heat pump to a electricity meter to effect reading and statistics collection.
Most of the key components of refrigerant circulation and water pipeline are pre-installed in ThemaX dual zone mini split heat pump, enabling installers can take an easy installation way.
All-in-one structural design, with installation backplane, for easier disassembly and convenient installation.
Single fan design enables ThermaX inverter mini split heat pumps to get easier shipping & handling and more swift installation.

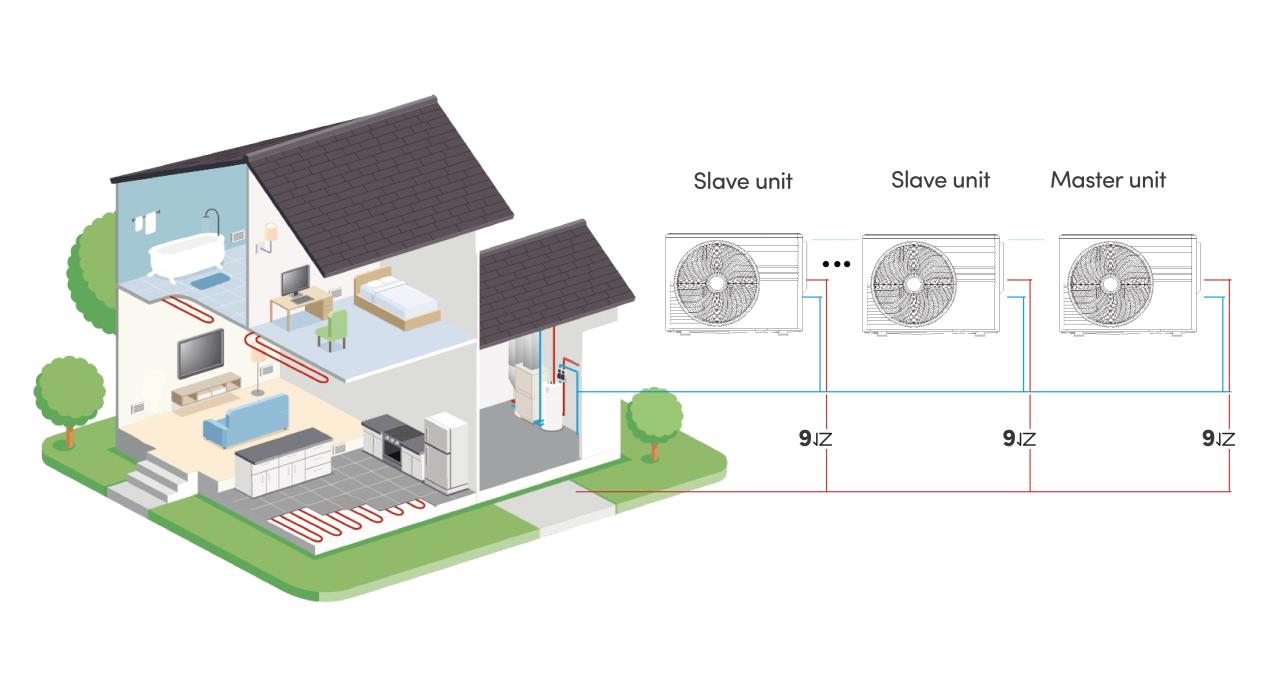

One controller can connect up to 6 units in group in modular combination. Among modules, electrodeless communication is acceptable, and ThermaX 2 zone mini split heat pump detects signal and shift into internal recognition automatically.
Combining with AHS, DHW temperature is adjusted within 20~75℃， 50℃ default.
To limit the max access current and enable the split heat pump to become suitable for a variety of current supplies, the power limitation is designed.
The drying up mode is applied on newly installed floor loops before the initial heating and the pr-heating mode is designed for the 1st heating of a new seasonal heating for floor protection.
Heating mode and/or DHW mode with low water temp is set to work on mini split heat pump system. Preventing water from freezing during vacations outside in winter, this mode can be set by user before they depart to home to ensure germ free water is available when they are home.
To balance the running time of various modules, ThermaX split heat pump detects the running time on every modules during startup and starts the modules from the one in the minimum running time to the one in the maximum as per the capacity demand.
Multiple anti-freezing setting/Multiple oil returning control/High & Low voltage protection/High temperature protection/Efficient smart defrosting.
● Less footprint required for the outdoor unit；
● Flexible installation as it can be 75m far away from the building;
● Less noise emission, it’s quieter and more comfortable;
● Better anti-freezing function, wider application ambient temperature range

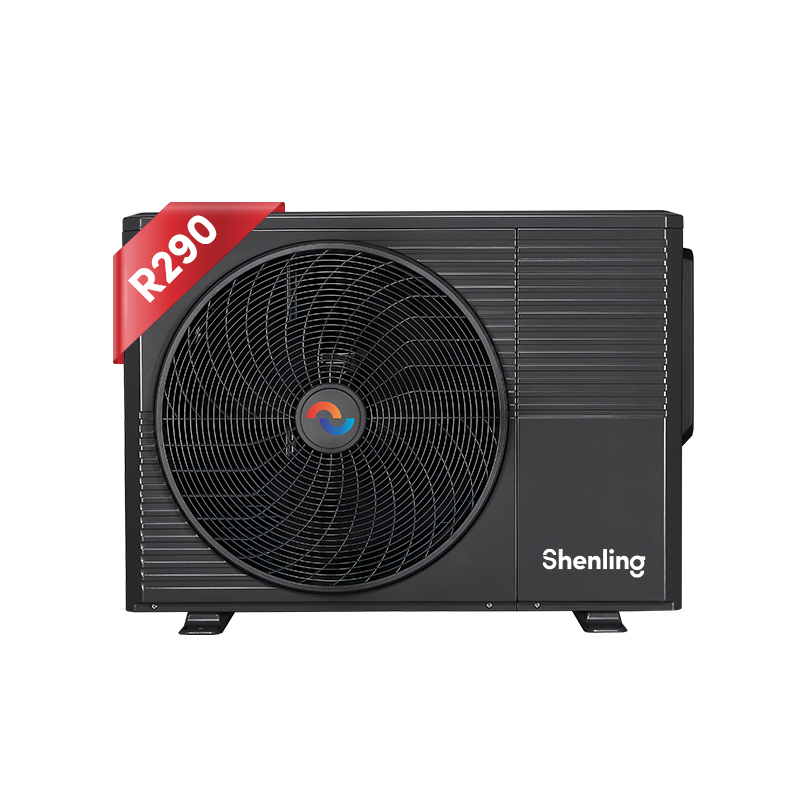

| Shenling ThermaX split heat pump specification (outdoor unit) | ||||||||||||
| Outdoor unit model | HPS- | V40W/R2 | V60W/R2 | V80W/R2 | V100W/R2 | V120W/R2 | V140W/R2 | V160W/R2 | V120W/SR2 | V140W/SR2 | V160W/SR2 | |
| Power supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | |||||||||
| Heating1 | Capacity | kW | 4.40 | 6.45 | 8.40 | 10.00 | 12.20 | 14.20 | 16.00 | 12.20 | 14.20 | 16.00 |
| Rated input | kW | 0.86 | 1.30 | 1.70 | 2.13 | 2.52 | 3.05 | 3.60 | 2.52 | 3.05 | 3.60 | |
| COP | / | 5.10 | 4.95 | 4.95 | 4.69 | 4.85 | 4.65 | 4.45 | 4.85 | 4.65 | 4.45 | |
| Heating2 | Capacity | kW | 4.60 | 6.65 | 8.55 | 10.20 | 12.40 | 14.60 | 16.40 | 12.40 | 14.60 | 16.40 |
| Rated input | kW | 1.19 | 1.75 | 2.26 | 2.79 | 3.40 | 4.06 | 4.75 | 3.40 | 4.06 | 4.75 | |
| COP | / | 3.85 | 3.80 | 3.78 | 3.65 | 3.65 | 3.60 | 3.45 | 3.65 | 3.60 | 3.45 | |
| Heating3 | Capacity | kW | 4.60 | 6.30 | 8.35 | 9.50 | 12.00 | 14.00 | 16.40 | 12.00 | 14.00 | 16.40 |
| Rated input | kW | 1.48 | 2.03 | 2.69 | 3.10 | 4.07 | 4.81 | 5.84 | 4.07 | 4.81 | 5.84 | |
| COP | / | 3.10 | 3.10 | 3.10 | 3.06 | 2.95 | 2.91 | 2.81 | 2.95 | 2.91 | 2.81 | |
| Cooling4 | Capacity | kW | 4.60 | 6.50 | 8.40 | 10.00 | 12.20 | 14.00 | 15.40 | 12.20 | 14.00 | 15.40 |
| Rated input | kW | 0.86 | 1.26 | 1.81 | 2.38 | 2.68 | 3.26 | 3.71 | 2.68 | 3.26 | 3.71 | |
| EER | / | 5.35 | 5.15 | 4.65 | 4.20 | 4.55 | 4.30 | 4.15 | 4.55 | 4.30 | 4.15 | |
| Cooling5 | Capacity | kW | 4.70 | 5.60 | 7.50 | 9.00 | 11.80 | 13.40 | 14.00 | 11.80 | 13.40 | 14.00 |
| Rated input | kW | 1.38 | 1.72 | 2.40 | 3.10 | 3.87 | 4.70 | 5.00 | 3.87 | 4.70 | 5.00 | |
| EER | / | 3.40 | 3.25 | 3.13 | 2.90 | 3.05 | 2.85 | 2.80 | 3.05 | 2.85 | 2.80 | |
| Seasonal space heating efficiency6 | Average climate 35℃ | Class | A+++ | |||||||||
| Average climate 55℃ | Class | A++ | ||||||||||
| Refrigerant | Type(GWP) | / | R32(675) | |||||||||
| Charged volume | kg | 1.5 | 1.6 | 1.84 | ||||||||
| Sound power level7 | dB(A) | 60 | 63 | 65 | 66 | 68 | 69 | 70 | 68 | 69 | 70 | |
| Net weight/Gross weight | kg | 57/69 | 62/74 | 95/107 | 102/114 | |||||||
| Net dimension(W×D×H) | mm | 1040*450*725 | 1120*520*857 | |||||||||
| Gross dimension(W×D×H) | mm | 1110*475*870 | 1180*560*1005 | |||||||||
| Container loading quantity(40HQ) | sets | 100(ODU+IDU) | 70(ODU+IDU) | |||||||||
| Connection diameter | Refrigerant liquid | mm | 6.35 | 9.52 | ||||||||
| Refrigerant gas | mm | 15.88 | 15.88 | |||||||||
| Between indoor and outdoor unit | Height difference | m | ≤20 | |||||||||
| Pipe length | m | 2-30 | ||||||||||
| Max. pipe length w/o additioinal refrigerant | m | 15 | ||||||||||
| Additional refrigerant charge | g/m | 20 | 38 | |||||||||
| Operation range | Heating | ℃ | -25～35 | |||||||||
| Cooling | ℃ | -5～43 | ||||||||||
| Domestic hot water | ℃ | -25～43 | ||||||||||
Notes：
| ||||||||||||

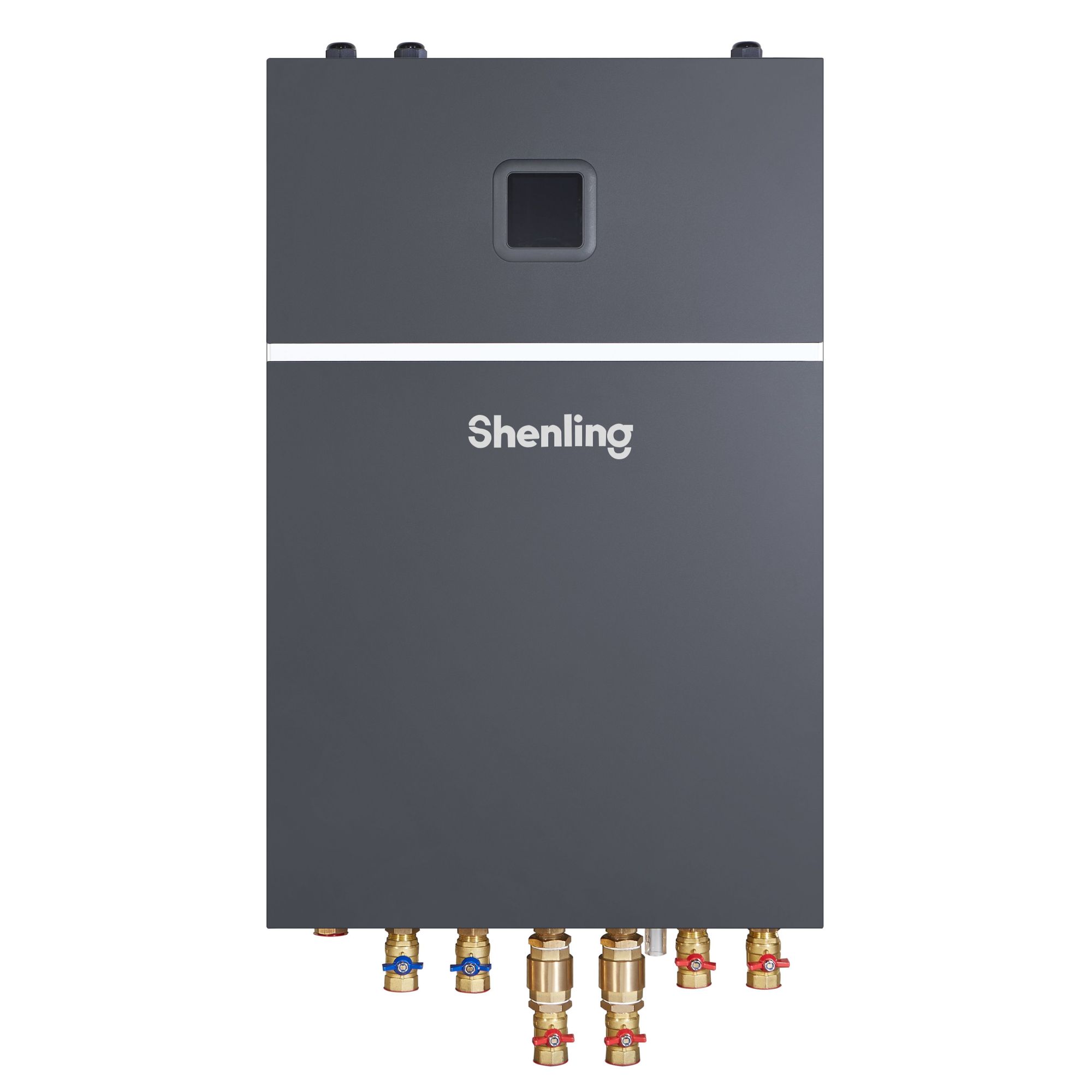

| Shenling ThermaX split heat pump specification (indoor unit) | ||||||||||||
| Hydraulic box model | HM-60/DR2 | HM-100/DR2 | HM-160/DR2 | HM-160/DSR2 | ||||||||
| Power supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | |||||||||
| Sound power level1 | dB(A) | 40 | 42 | 43 | 43 | |||||||
| Net weight/Gross weight | kg | 37/43 | 37/43 | 39/45 | 39/45 | |||||||
| Net dimension(W×H×D) | mm | 420×790×275 | ||||||||||
| Gross dimension(W×D×H) | mm | 525×1050×360 | ||||||||||
| Water pump | Type | / | DC inverter | |||||||||
| Max. pump head | m | 9 | ||||||||||
| Connection diameter | Water side | inch | R1″ | |||||||||
| Refrigerant liquid | mm | 6.35 | 9.52 | |||||||||
| Refrigerant gas | mm | 15.88 | 15.88 | |||||||||
| Electric booster heater | Capacity option | kW | 3 | 3 | 3 | 9 | ||||||
| Capacity steps | / | 1 | 1 | 1 | 3 | |||||||
| Outlet water temp. setting range | Heating | ℃ | 25～63 | |||||||||
| Cooling | ℃ | 5～25 | ||||||||||
| Domestic hot water | ℃ | 20～60 | ||||||||||
| Notes： 1. Testing standard: EN12102-1. 2. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014. | ||||||||||||
