Heat pumps present an energy-efficient solution to traditional furnaces and air conditioners across various climates. Similar to how your refrigerator operates, heat pumps utilize electricity to transfer heat from a cooler area to a warmer one, resulting in a cooler indoor space and a warmer outdoor space.
Throughout the heating season, heat pumps extract heat from the chilly outdoors and transfer it into your cozy home. Conversely, during the cooling season, heat pumps extract heat from inside your home and release it outdoors.By transferring heat instead of generating it, heat pumps efficiently maintain comfortable indoor temperatures.
Shenling Heat Pump Solution, gather heat from the air surrounding your residence and concentrate it for indoor use.
Shenling provide the standard Monobloc with built-in water pump. When installing the unit, the installer should connect other parts including the buffer tank and DHW tank. External fittings are also need including the three way valve, Y type filter, check valve, shut off valve. For the hybrid system especially for the old house, the installer need to connect the gas boiler to the water circuit.

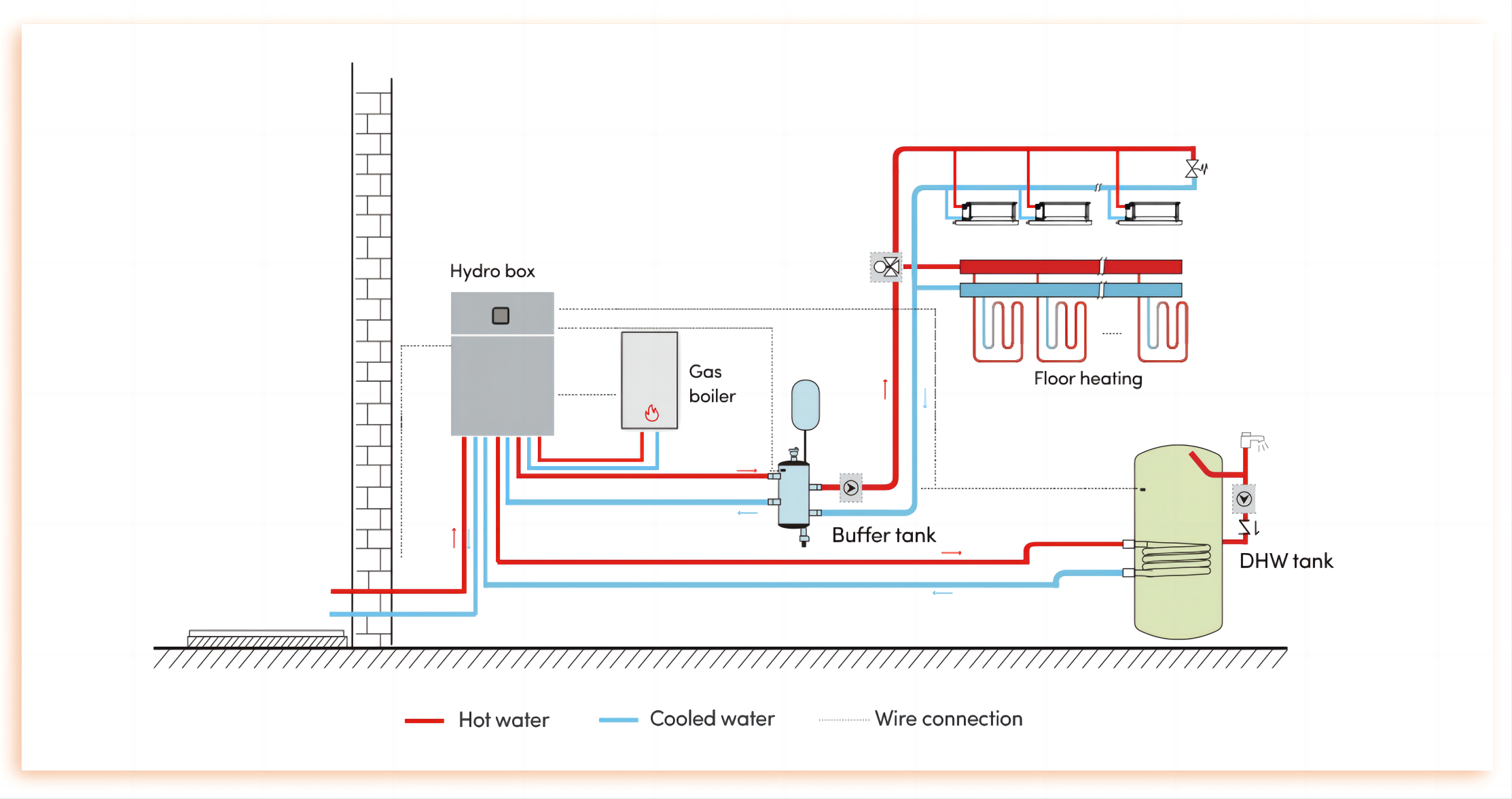

Shenling provide the monobloc without water pump+Hydro box. The hydro box integrate water pump, valves, safety components, electric electric heater, and other components. When installing the heat pump system, theinstaller only need to connect the water pipe from heat pump, gas boiler,water tank directly to the Hydro box, which is very simple and convenient, even if you do not have a lot of experience, you can follow the instructions tocomplete the installation.

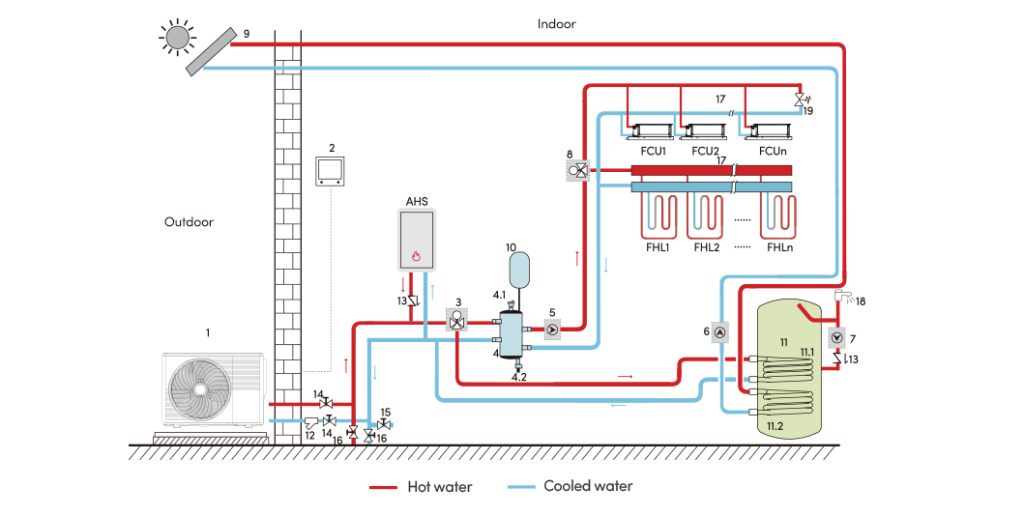

If the ambient temperature drops to certain point and heat pump is unable to cover the heating demand, ThermaX will start the auxiliary heat source for the additional heating capacity. When the ambient temperature drops below the protected point, ThermaX will shut down for protection and the auxiliary heat source will provide all the heating capacity.
Note: Auxiliary heat source and domestic hot water shall be installed according to the actual use requirements.
| Code | Assembly unit | Code | Assembly unit |
| 1 | Main unit | 11.1 | Coil1: heat exchanger for heat pump |
| 2 | User interface | 11.2 | Coil2: heat exchanger for Solar energy |
| 3 | SV1:3way valve(Field supply) | 12 | Filter(Accessory) |
| 4 | Balance tank(Field supply) | 13 | Check valve(Field supply) |
| 4.1 | Automatic air purge valve | 14 | Shut-off valve(Field supply) |
| 4.2 | Drainage valve | 15 | Filling valve(Field supply) |
| 5 | P_C1: Outside circulation pump(Field supply) | 16 | Drainage valve(Field supply) |
| 6 | P_C3: Solar pump(Field supply) | 17 | Collector/distributor(Field supply) |
| 7 | P_C4: DHW pipe pump(Field supply) | 18 | Hot water tap(Field supply) |
| 8 | SV3:3 way valve(Field supply) | 19 | Bypass valve(Field supply) |
| 9 | Solar panel(Field supply) | 20 | SV3:3 way valve(Field supply) |
| 10 | Expansion vessel(Field supply) | 21 | P_C2: Zone2 circulation pump(Field supply) |
| 11 | Domestic hot water tank(Field supply) | AHS | Auxiliary heat source(Field supply) |
| FHL | Floor heating loop(Field supply) | ||
| FCU | Fan coil unit(Field supply) | ||
| RAD | Radiator(Field s |

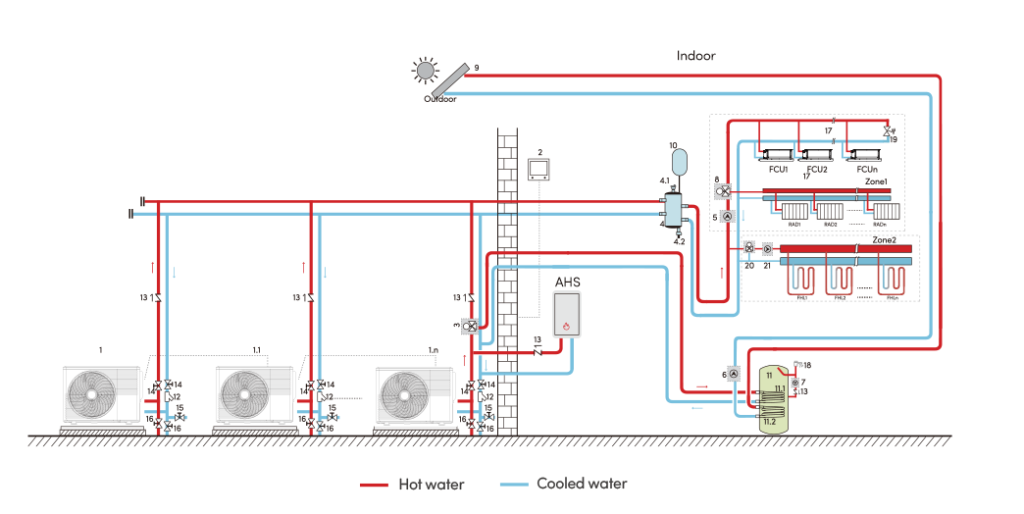

Through combination with auxiliary heat sources, e.g. gas boiler, electric water heater, etc, Shenling ThermaX can be configured into a hybrid heating system. ThermaX will take the control as a master unit to promise a powerful and energy efficient.
Note: Auxiliary heat source and domestic hot water shall be installed according to the actual use requirements.
| Code | Assembly unit | Code | Assembly unit |
| 1 | Main unit | 11.1 | Coil1: heat exchanger for heat pump |
| 2 | User interface | 11.2 | Coil2: heat exchanger for Solar energy |
| 3 | SV1:3way valve(Field supply) | 12 | Filter(Accessory) |
| 4 | Balance tank(Field supply) | 13 | Check valve(Field supply) |
| 4.1 | Automatic air purge valve | 14 | Shut-off valve(Field supply) |
| 4.2 | Drainage valve | 15 | Filling valve(Field supply) |
| 5 | P_C1: Outside circulation pump(Field supply) | 16 | Drainage valve(Field supply) |
| 6 | P_C3: Solar pump(Field supply) | 17 | Collector/distributor(Field supply) |
| 7 | P_C4: DHW pipe pump(Field supply) | 18 | Hot water tap(Field supply) |
| 8 | SV3:3 way valve(Field supply) | 19 | Bypass valve(Field supply) |
| 9 | Solar panel(Field supply) | AHS | Auxiliary heat source(Field supply) |
| 10 | Expansion vessel(Field supply) | FHL | Floor heating loop(Field supply) |
| 11 | Domestic hot water tank(Field supply) | FCU | Fan coil unit(Field supply) |
