Color: Silver and Black
Energy class: A+++
R32 refrigerant
Space heating+Cooling+DHW
Min operation ambient temp. -25℃
Max outlet water temp. 65℃
Full colour LCD display controller
Wifi smart control
Smart grid
Disinfection
Power consumption counting
A monobloc air source heat pump water heater is a single-unit heat pump standing outside of the home. Usually, a singular outdoor unit in which the compressor, heat exchanger, and water side of the refrigeration cycle are contained.

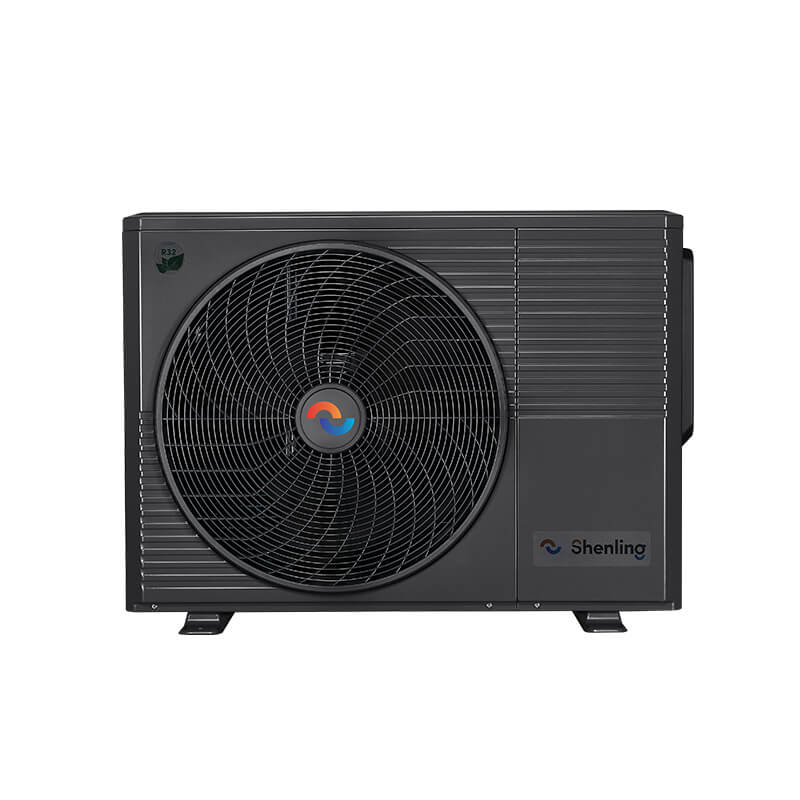

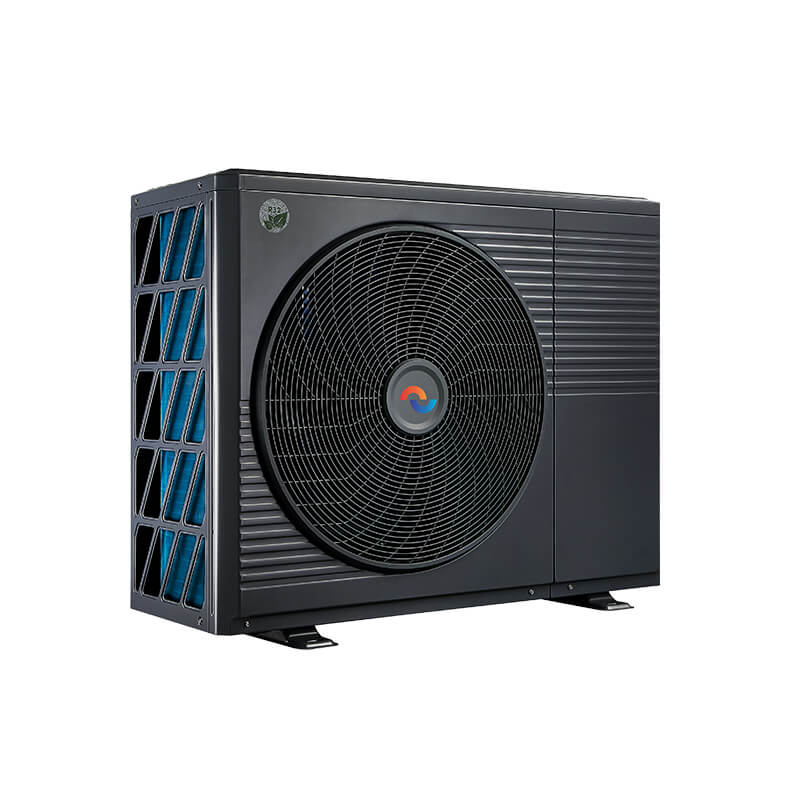

ThermaX Mono Air Source Heat Pumps Overview
Energy class: A+++
R32 refrigerant
Space heating+Cooling+DHW
Min operation ambient temp. -25℃
Max outlet water temp. 63℃
Full-colour LCD display controller
Wifi smart control
Smart grid
Disinfection
Power consumption counting
Shenling Domestic Air-Source Heat Pump has a lot of certificates, including MCS, Keymark, CE, and so on. Shenling offers assistance in applying different certifications across different countries to maximize consumers’ benefits. For more information about the assistance that Shenling provides to partners and clients, please visit here.
In order to reduce carbon emissions and mitigate global warming, Shenling has developed the R32 air-source heat pump – ThermaX series. The R32 refrigerant has many advantages such as low carbon and high efficiency, making it widely recognized as the most popular refrigerant in the industry. It has made contributions to reducing carbon emissions and helps to achieve the goal of global carbon neutrality.
The trailing edge notch design of ThermaX air source heat pumps changes the pressure distribution at the trailing edge of the blade, the Suction surface concave design minimizes the wake-shedding vortex size, and the edge thickening design improves the blade strength.
A full set of mold designs of air-source heat pump water heater, simulating compressor vibration at different frequencies, simulating CFD and airflow at different frequencies, and three layers of sound insulation and environmental protection sound absorbing materials.
ȵʂ. average up to A+++ at 35℃
ȵʂ. average up to A++ 55℃
The ThermaX series air source heat pump water heater is specifically developed using cutting-edge heat pump technology and modern design to meet strict requirements for efficiency, stability, and quietness. The ThermaX series not only utilizes the R32 green gas and inverter technology but has also been awarded an A+++ energy label at a 35℃ water outlet. This equipment has the highest energy rating of A+++, offering excellent energy-saving performance and significantly reducing users’ energy costs.
ThermaX air source heat pump efficiency is high. Equipped with a wide working frequency DC frequency conversion compressor, an electronic expansion valve that can adjust different loads and flows with high precision, a DC frequency conversion fan that can be steplessly controlled, a DC frequency conversion circulating water pump, and a plate heat exchanger with higher efficiency and smaller volume.
If combined with AHS, the domestic hot water temperature can be adjustable within 20~75℃, 50℃ default.
Power limitation design is to limit the max access current to let ThermaX air-source heat pump equipment become suitable for a variety of current supplies.
The drying-up mode of the ThermaX air source heat pump is designed to be used before the initial heating of newly installed floor loops and the pre-heating mode is designed for the first heating of new seasonal heating to protect the floor.
The best air source heat pump is working in heating mode and/or DHW mode with low water temp. In order to avoid water from freezing in the winter during vacations outside, users can set this mode before they return home to ensure germ-free water is available to use when they return home.
To promise the running time of different modules are balanced, ThermaX domestic air source heat pump will check the running time of each module during startup and will start the modules from the minimum running time to the maximum according to the capacity demand.
Multiple antifreeze protection/Multiple oil return control/High voltage protection/Low voltage protection/High-temperature protection/Efficient intelligent defrosting.
Under low environmental temperatures, the performance of conventional heat pumps will be limited.
Firstly, the heating capacity weakens as the environmental temperature decreases. Secondly, the reliability of the machine is affected by low-temperature environments, impacting stability and operational reliability. Thirdly, the operating range and safety limits can influence the performance of the air source heat pump.
Fortunately, the ThermaX series excels in efficiently operating at -25℃ while maintaining high COP (Coefficient of Performance) and reliable stability.
ThermaX produces as low as 35 dB (A) sound pressure level at 3 meters. Shenling is committed to creating a super quiet operating environment for users. The ThermaX series air source heat pump utilizes various noise reduction technologies, and each product has undergone repeated testing and optimization.
Shenling ThermaX air source heat pump incorporates wifi function/SD card program upgrade/LCD full-color touch screen/14mm ultra-thin design/Snap-in installation to maximize user’s convenience, users can control their air source heat pump water heater at any time.
ThermaX air-source heat pump various controlling mode, including: Double zones control/Schedule function and time setting/Remote monitoring technology/5 language control (English/German/French/Italian/Polish)
Only a laptop and a micro USB cable can realize program upgrades of the ThermaX air source heat pump’s indoor units and the outdoor units automatically.
ThermaX domestic hot water heat pump offers a choice to control dual temperature zones simultaneously by supplying different water temperatures for fan coil and floor heating of realizing the best comfort.
With the help of the Weather temperature cure, the water temperature of the air source heat pump hybrid system will automatically change as the outside air temperature changes.
The water will be heated and circulated in the pipeline, so that the users don’t have to wait for the cold released and wasted, but can use hot water directly.
The air-source heat pump can operate according to the mode and temperature set after being started.
The user needs only connect an electricity meter to read and collect the statistics.

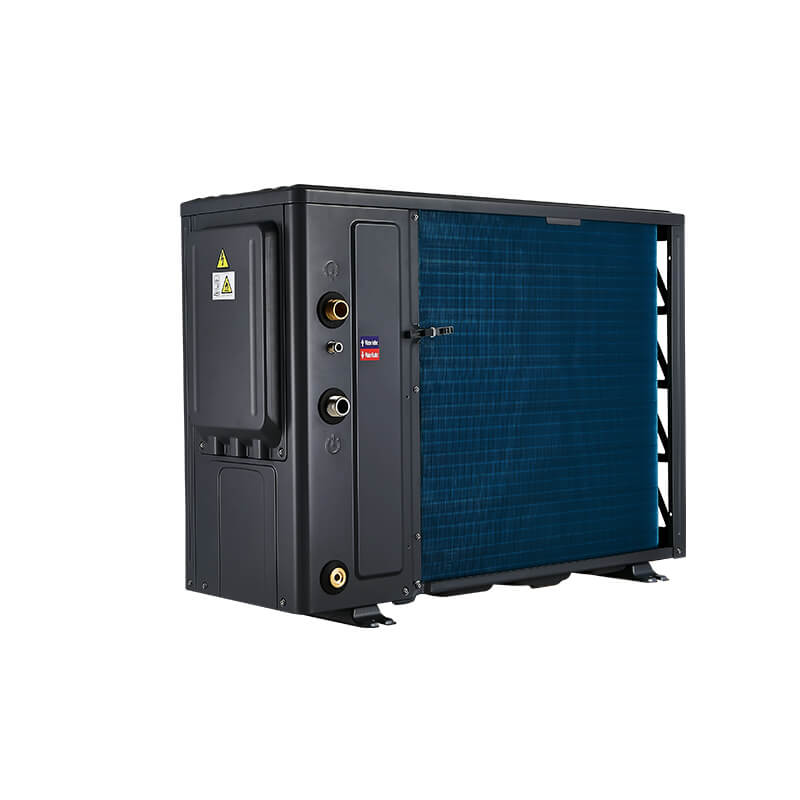

ThermaX air source heating and cooling system has built-in most o the key components of the refrigerant circuit and water pipeline, by which the installers can take an easy way during the installation.
Single fan design enables ThermaX domestic hot water heat pump easier transportation and more flexible installation.
Integrated structure design, with its own installation backplane, easy for disassembly, convenient for installation.
In modular combination, one controller of air sourced heat pump can control up to 6 units in a group. Between modules, electrodeless communication is accepted and ThermaX air source heat pump hot water will detect the signal and shift the internal recognition automatically.
● Refrigerant circuit is completely contained in one unit;
● No F-gas qualified installer is a technician during the installation and maintenance;
● Simple installation contributes less cost to the user;
tags:{cost of air source heat pump, air source heat pump hybrid system, air source heat pump installation cost, air source heat pump installer, air source heat pump installation cost, air source heat pump hot water, air source heat pump manufacturers, domestic air source heat pump, air source heating and cooling}<:/p >
Shenling ThermaX monoblock heat pump specification | ||||||||||||
Model | HPM- | V40W/R2 | V60W/R2 | V80W/R2 | V100W/R2 | V120W/R2 | V140W/R2 | V160W/R2 | V120W/SR2 | V140W/SR2 | V160W/SR2 | |
Power supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | |||||||||
Heating1 | Capacity | kW | 4.40 | 6.45 | 8.40 | 10.00 | 12.20 | 14.20 | 16.00 | 12.20 | 14.20 | 16.00 |
Rated input | kW | 0.85 | 1.29 | 1.68 | 2.11 | 2.49 | 3.02 | 3.56 | 2.49 | 3.02 | 3.56 | |
COP | / | 5.15 | 5.00 | 5.00 | 4.74 | 4.90 | 4.70 | 4.50 | 4.90 | 4.70 | 4.50 | |
Heating2 | Capacity | kW | 4.60 | 6.65 | 8.55 | 10.20 | 12.40 | 14.60 | 16.40 | 12.40 | 14.60 | 16.40 |
Rated input | kW | 1.18 | 1.73 | 2.23 | 2.76 | 3.35 | 4.00 | 4.69 | 3.35 | 4.00 | 4.69 | |
COP | / | 3.90 | 3.85 | 3.83 | 3.70 | 3.70 | 3.65 | 3.50 | 3.70 | 3.65 | 3.50 | |
Heating3 | Capacity | kW | 4.60 | 6.30 | 8.35 | 9.50 | 12.00 | 14.00 | 16.40 | 12.00 | 14.00 | 16.40 |
Rated input | kW | 1.46 | 2.00 | 2.65 | 3.05 | 4.00 | 4.73 | 5.73 | 4.00 | 4.73 | 5.73 | |
COP | / | 3.15 | 3.15 | 3.15 | 3.11 | 3.00 | 2.96 | 2.86 | 3.00 | 2.96 | 2.86 | |
Cooling4 | Capacity | kW | 4.60 | 6.50 | 8.40 | 10.00 | 12.20 | 14.00 | 15.40 | 12.20 | 14.00 | 15.40 |
Rated input | kW | 0.85 | 1.25 | 1.79 | 2.35 | 2.65 | 3.22 | 3.67 | 2.65 | 3.22 | 3.67 | |
EER | / | 5.40 | 5.20 | 4.70 | 4.25 | 4.60 | 4.35 | 4.20 | 4.60 | 4.35 | 4.20 | |
Cooling5 | Capacity | kW | 4.70 | 5.60 | 7.50 | 9.00 | 11.80 | 13.40 | 14.00 | 11.80 | 13.40 | 14.00 |
Rated input | kW | 1.36 | 1.70 | 2.36 | 3.05 | 3.81 | 4.62 | 4.91 | 3.81 | 4.62 | 4.91 | |
EER | / | 3.45 | 3.30 | 3.18 | 2.95 | 3.10 | 2.90 | 2.85 | 3.10 | 2.90 | 2.85 | |
Seasonal space heating efficiency6 | Average climate 35℃ | Class | A+++ | |||||||||
Average climate 55℃ | Class | A++ | ||||||||||
Refrigerant | Type(GWP) | / | R32(675) | |||||||||
Charged volume | kg | 1.15 | 1.25 | 1.78 | ||||||||
Sound power level7 | dB(A) | 60 | 63 | 65 | 66 | 68 | 69 | 70 | 68 | 69 | 70 | |
Net weight/Gross weight | kg | 72/86 | 76/90 | 110/126 | 119/135 | |||||||
Net dimension(W×D×H) | mm | 1000*450*725 | 1080*520*857 | |||||||||
Gross dimension(W×D×H) | mm | 1110*475*870 | 1180*560*1005 | |||||||||
Container loading quantity(40HQ) | pcs | 150 | 82 | |||||||||
Water connection diameter | inch | R1″ | R1-1/4″ | |||||||||
Operation range | Heating | ℃ | -25~35 | |||||||||
Cooling | ℃ | -5~43 | ||||||||||
Domestic hot water | ℃ | -25~43 | ||||||||||
Outlet water temp. setting range | Heating | ℃ | 25~63 | |||||||||
Cooling | ℃ | 5~25 | ||||||||||
Domestic hot water | ℃ | 20~60 | ||||||||||
Notes: 1. Outdoor air temperature 7℃ DB, 6℃ WB; entering water temperature 30℃, leaving water temperature 35℃. 2. Outdoor air temperature 7℃ DB, 6℃ WB; entering water temperature 40℃, leaving water temperature 45℃. 3. Outdoor air temperature 7℃ DB, 6℃ WB; entering water temperature 47℃, leaving water temperature 55℃. 4. Outdoor air temperature 35℃ DB; entering water temperature 23℃, leaving water temperature18℃. 5. Outdoor air temperature 35℃ DB; entering water temperature12℃, leaving water temperature 7℃. 6. Seasonal space heating energy efficiency class tested in average climate. 7. Testing standard: EN12102-1. 8. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014. |
||||||||||||
ThermorE model | EBH-30 | EBH-90 | ||||||||||
Power supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | |||||||||
Capacity (max) | kW | 3 | 9 | |||||||||
Capacity steps | / | 1 | 3 | |||||||||
Input | kW | 3 | 3/6/9 | |||||||||
Net weight/Gross weight | kg | 13/15 | 15/17 | |||||||||
Net dimension(W×D×H) | mm | 278*215*504 | ||||||||||
Gross dimension(W×D×H) | mm | 379*279*665 | ||||||||||
Water connection diameter | inch | R1″ | ||||||||||
Notes: 1. Electric booster heater(ThermorE) is a optional module to be installed separately. |
||||||||||||
