Hydro Box Heat Pump Kit
The Shenling Hydro Box serves as a crucial part in providing a sustainable and energy-efficient means of meeting the hot and cold water needs for various hydronic solutions. With its all-electric operation, it not only ensures efficient heat exchange but also contributes to reducing environmental impact. Integrating with Shenling’s heat pump systems, it unlocks expanded possibilities for indoor unit configurations, enabling customized and optimized hydronic setups for different applications.
- .
- Key Features:
- Easy installation
- High-quality metal housing
- LCD touch display
- Pre-wiring of all-electric and hydraulic components
Description
Specification
Download
Description

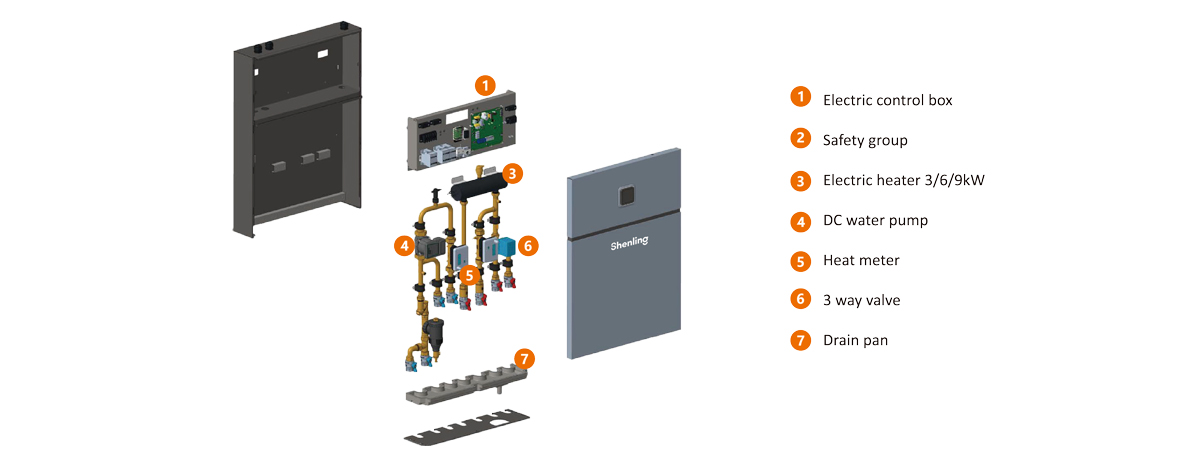

- Shenling Hydro Box presents an entirely electric approach to refrigerant-to-water heat exchange, thereby offering an efficient solution for the generation of hot and cold water in numerous hydronic applications. This includes highly efficient space heating and cooling. The hydrobox, when combined with Shenling’s heat pump systems, enhances indoor unit flexibility through hydronic integration.
- What is special in the Hydro Box?
- ● Heat meter Two heat meters record the heat produced by the heat pump and gas boiler separately. It’s convenient for user’s energy management.

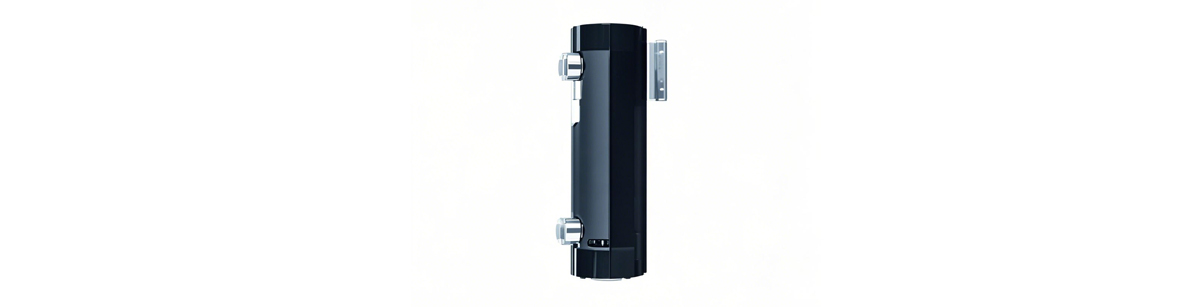

- ● 3 steps 3/6/9kW electric heating Built-in 3 steps electric heating is used when the heating capacity is insufficient or for the anti-freezing process of water circuit. Improve the user experience when the outside temperature is low.

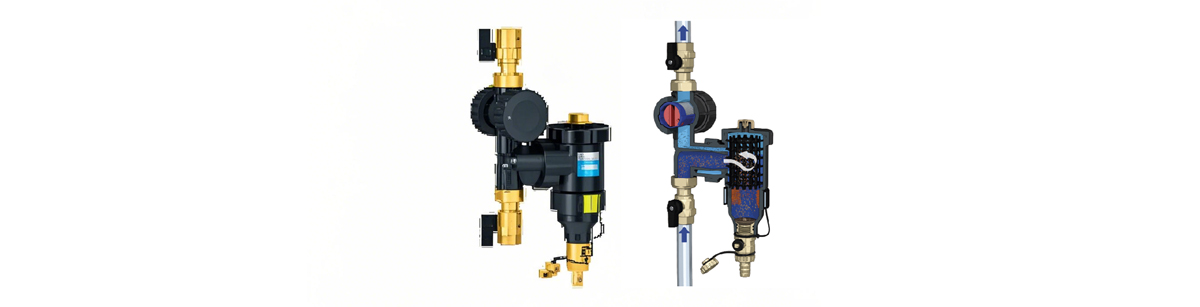

- ● Magnetic filter The magnetic filter is installed on the total water return pipe to avoid the dirty entering into the heat pump or gas boiler to protect the system.
- All electrical components of the Hydro Box are pre-wired to the integrated control at the factory, keeping the level of cabling effort required on-site to an absolute minimum.
- .
- The built-in heat pump control is truly impressive with its high-resolution, capacitive LCD touch display with an intuitive and straightforward menu navigation system with self-explanatory icons and innovative overview screens.
Specification
Shenling Hydro Box Specifications
| Model | HM90/DM | |
| Power Supply | V/Ph/Hz | 380-415/3/50 |
| Space heating water temp.range | ℃ | 25~75 |
| Space cooling water temp.range | ℃ | 5~25 |
| Operation ambient temp.range | ℃ | -25~43 |
| Water connection | inch | 1 |
| Water pressure(Max) | bar | 3 |
| Water pump type | / | Shimge/DC inveter/9m head |
| Water flow switch | L/min | 6 |
| Electric heater | kW | 3/6/9kW 3 steps |
| 3-way valve | inch | 1 |
| Sound pressure level(m) | dB(A) | 28 |
| Net dimension(LxWxH) | mm | 1200*620*200 |
| Gross dimension(LxWxH) | mm | 1275*710*255 |
