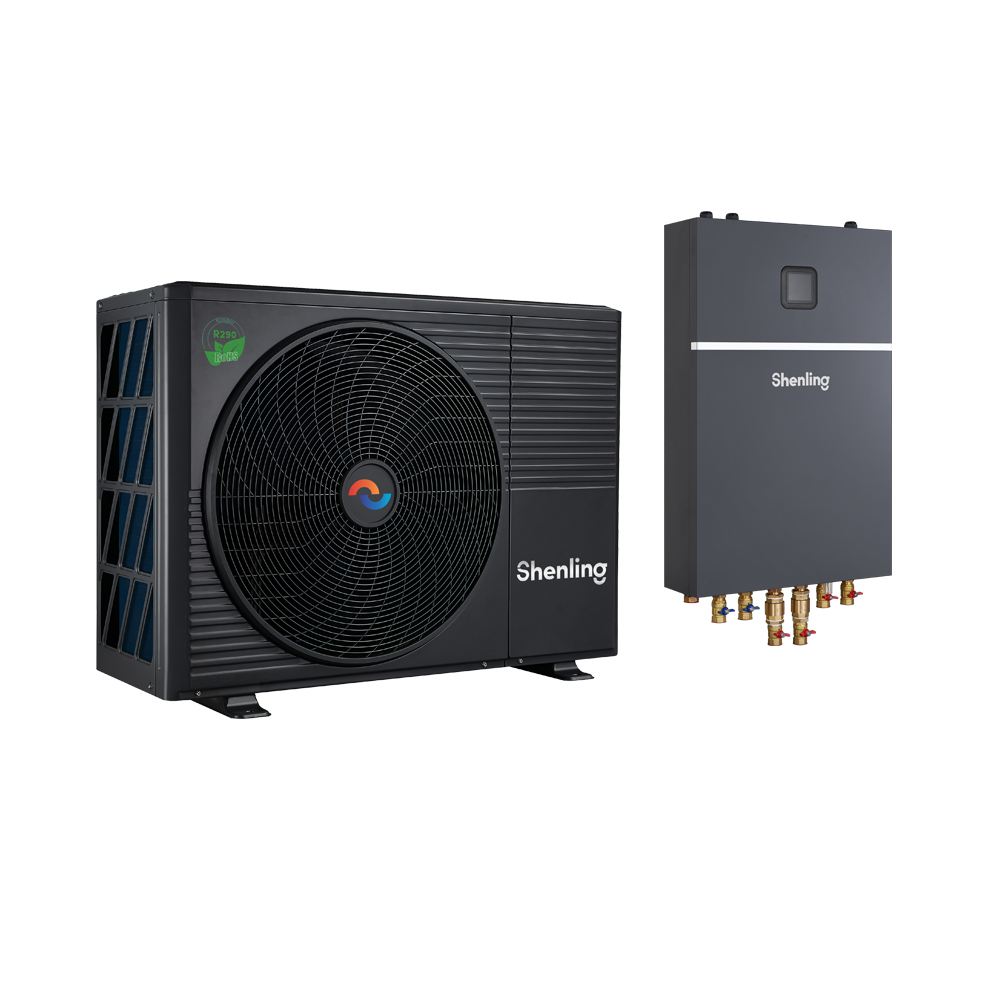

ThermaX R290 Monobloc Air Source Heat Pump with Hydro Box

Shenling R290 Air Source Heat Pump has energy class A+++ and the minimum operation ambient temperature is -25℃， and the maximum outlet water temperature is 75℃. It provides heating, cooling, and domestic hot water functions together to meet domestic families’ needs. It has MCS, Keymark, CE, and so on certifications. As a renewable heating system, this Shenling R290 Thermax series EVI DC Inverter Air Source Heat Pump features an output range from 18kw to 22kW. It features a touch screen controller, offering you a convenient and all-in-one controlling experience. You may easily control the temperature and switch the modes via the colorful screen. Its maximum heating capacity can reach up to 22KW, and maximum cooling capacity reaches up to 22 KW, providing you with a powerful system and high efficiency whether it’s for heating or cooling. In addition, this low-temperature air source heat pump operates quietly, providing a peaceful environment. It is ideal for properties in cold climates, as it uses outdoor air as its heat source in winter and as a heat sink in summer.

Aesthetic industrial design

Straightforwardly compatible with various architectures Mould-shaped shell and structure Improved processing precision Enhanced reliability and consistency Increased production efficiency and delivery date assurance

Dual fans & compact design

Wide operating range

  Space heating: The system can provide space heating efficiently even in extremely cold conditions, with a minimum ambient temperature of -25℃. The outlet water can reach a temperature of 70℃ even when the ambient temperature is as low as -15℃.   Space cooling: The cooling function is available from a relatively low ambient temperature of -5℃.   Domestic Hot Water (DHW): The system of the R290 heat pump is capable of providing domestic hot water even in very cold conditions, with a minimum ambient temperature of -25℃. When the electric booster heater is used, the maximum achievable DHW temperature is 80℃.

Silent mode

When the silent mode is activated, Shenling R290 heat pump system will reduce the frequency of the compressor and fan motor. As a result, the operating sound will be significantly reduced, though there will be a slight decrease in capacity.

Stable and reliable

  Smart Grid Integration: The R290 air source heat pump is equipped with smart grid integration capabilities, allowing it to recognize different electrical signals from the grid and adjust its operations accordingly. By identifying peak and valley prices of power supply, the R290 heat pump prioritizes the production of domestic hot water during low-price periods while setting a maximum output limit during high-price periods.   Intelligent Defrosting: Shenling R290 air source heat pump utilizes advanced smart defrosting technology to accurately determine the optimal defrosting time based on the real frosting condition. This intelligent defrosting process reduces energy consumption in low-temperature environments and effectively prevents defrosting errors.   Anti-freeze Protection: R290 dc inverter heat pump incorporates a comprehensive anti-freeze protection system with three layers of safeguards. Initially, the water pump is activated when low ambient and water temperatures are detected. If the situation remains unresolved, the heat pump will be initiated. In the rare event of a heat pump failure, the electric booster heater will be activated if it is equipped in the system.

Multi-system protection

Intelligent control

Wired controller Function Standard wifi function for remote control SD card program upgrade, easy for maintenance User-friendly interface, easy to operate Appearance Aesthetic design, simple but not easy Obsidian black colour, high-end and elegant 14mm ultra-thin design, small and exquisite   Installation With installation backplane, installed independently, or compatible with 86 threading box

APP control

Easy to read and set Dual temperature zone control Schedule function and weekly/daily timer Silent mode Holiday mode Remote monitoring technology Multi-language control

Built-In Key components



R290 Thermax 18KW/22KW DC Inverter Air Souce Heat Pump For Space Heating, Cooling and DHW

Model				HPM-V180W/SR3	HPM-V220W/SR3
Power Supply			V/Ph/Hz	380-415V/3N/50Hz
Heating1	Capacity		kW	18.00	22.00
	Rated Input		kW	3.79	4.89
	COP		/	4.75	4.50
Heating2	Capacity		kW	18.00	22.00
	Rated Input		kW	4.74	6.11
	COP		/	3.80	3.60
Heating3	Capacity		kW	18.00	22.00
	Rated Input		kW	5.63	7.10
	COP		/	3.20	3.10
Cooling4	Capacity		kW	18.00	20.00
	Rated Input		kW	3.88	4.59
	EER		/	4.64	4.36
Cooling5	Capacity		kW	18.00	20.00
	Rated Input		kW	5.72	6.90
	EER		/	3.15	2.90
Seasonal space heating energy efficiency class6	Outlet water temp. at 35℃		/	A+++	A+++
	Outlet water temp. at 55℃		/	A+++	A+++
Refrigerant	Type(GWP)		/	3.00	3.00
	Charged volume		kg	2.17	2.17
Sound power Level7(1m)			dB	55	56
Sound pressure Level7(1m)			dB(A)	42	43
Net dimension( W×D×H )			mm	1218×497×1568
Packaged dimension( W×D×H )			mm	1330×590×1721
Net weight/Gross weight			kg	185/210
Water piping connection			mm	R1-1/4″
Water pump head			m	12m
Ambient temp. range	Cooling		℃	-5~43
	Heating		℃	-25~35
	Domestic hot water		℃	-25~43
Outlet water temp. setting range	Cooling		℃	5~25
	Heating		℃	25~75
	Domestic hot water		℃	20~70
Notes： 1.Outdoor air temperature7℃ DB，6℃ WB；Water inlet 30℃，Water outlet35℃； 2.Outdoor air temperature7℃ DB，6℃ WB；Water inlet 40℃，Water outlet45℃； 3.Outdoor air temperature7℃ DB，6℃ WB；Water inlet 47℃，Water outlet55℃； 4.Outdoor air temperature35℃ DB；Water inlet 23℃，Water outlet18℃； 5.Outdoor air temperature35℃ DB；Water inlet12℃，Water outlet7℃； 6.Seasonal space heating energy efficiency class testes in average climate general conditions. 7.Testing standard: EN12102-1. 8.Backup electric heater is external installation. 9.Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014.
