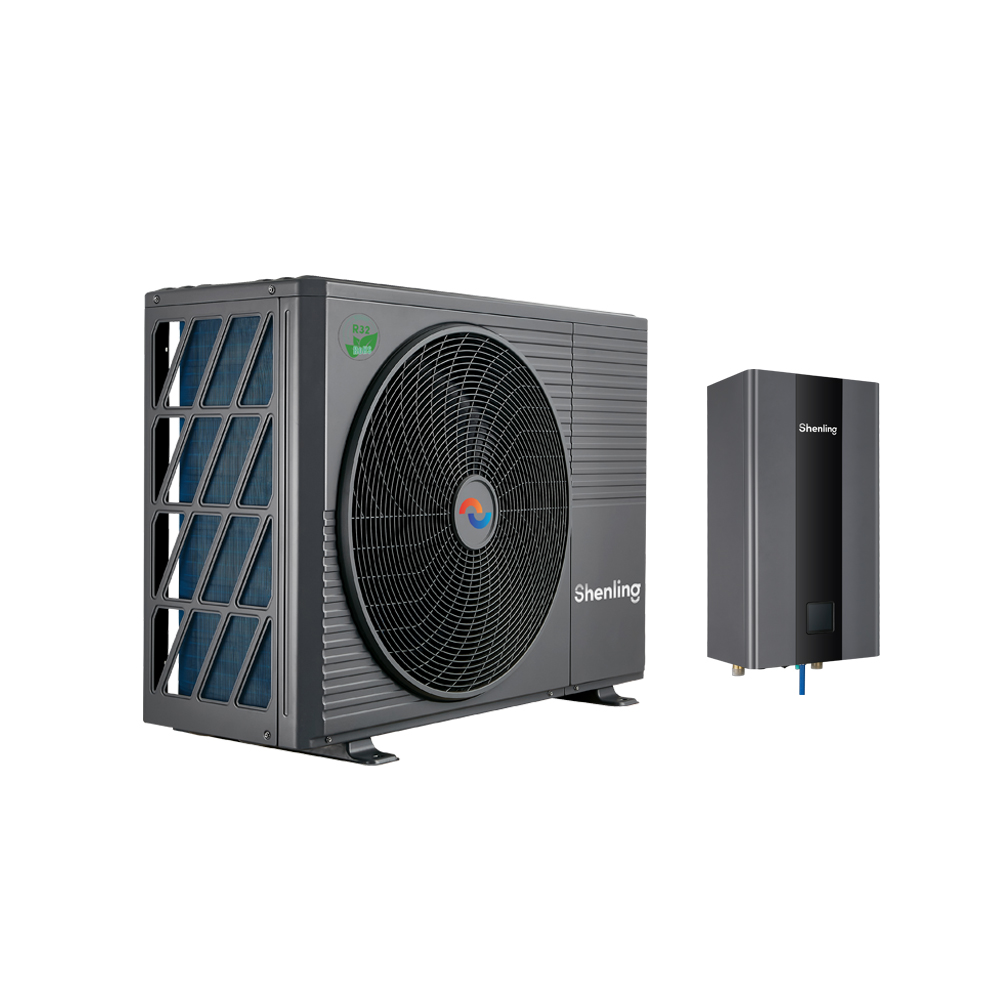

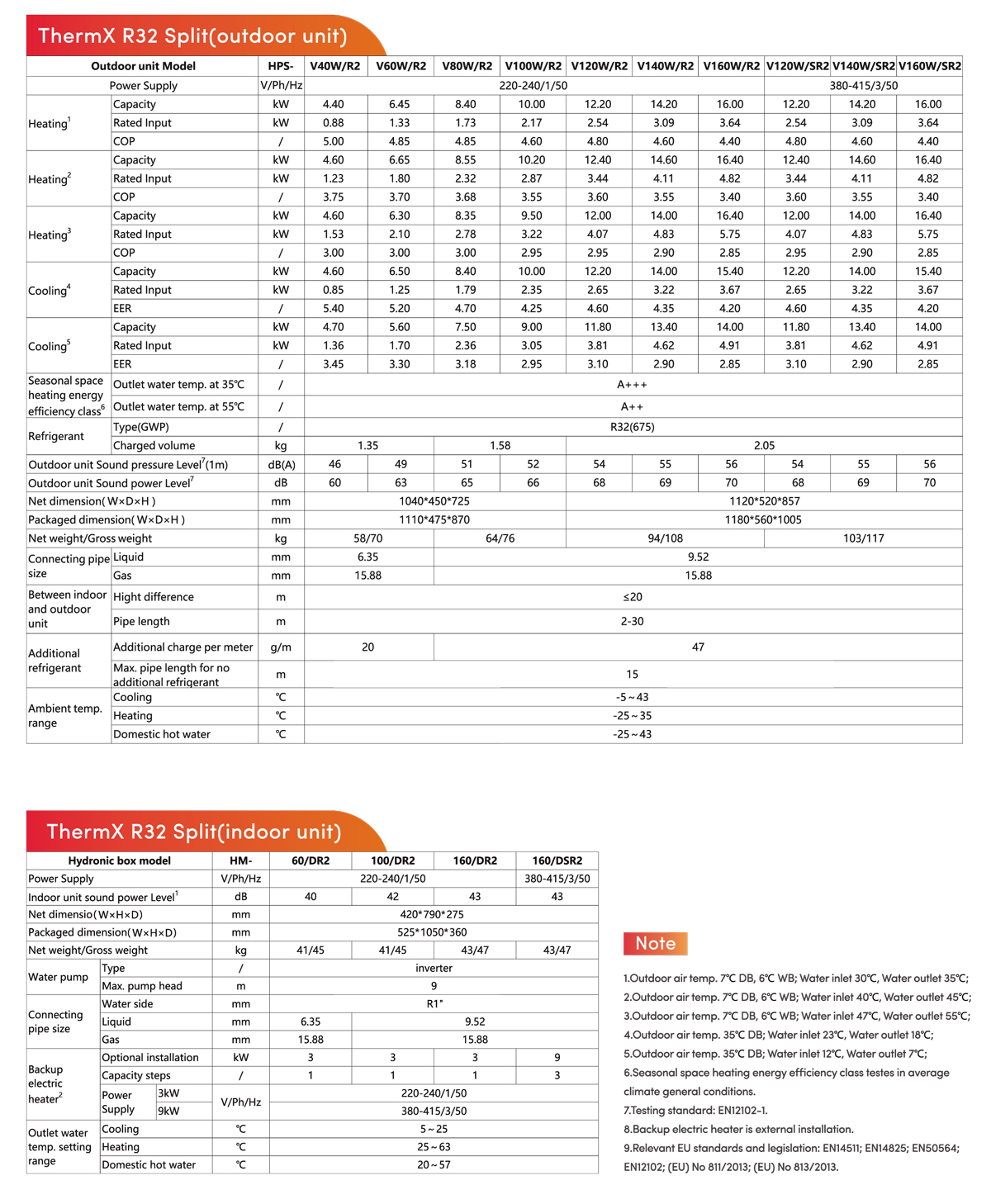

| Shenling ThermaX split heat pump specification (outdoor unit) | ||||||||||||
| Outdoor unit model | HPS- | V40W/R2 | V60W/R2 | V80W/R2 | V100W/R2 | V120W/R2 | V140W/R2 | V160W/R2 | V120W/SR2 | V140W/SR2 | V160W/SR2 | |
| Power supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | |||||||||

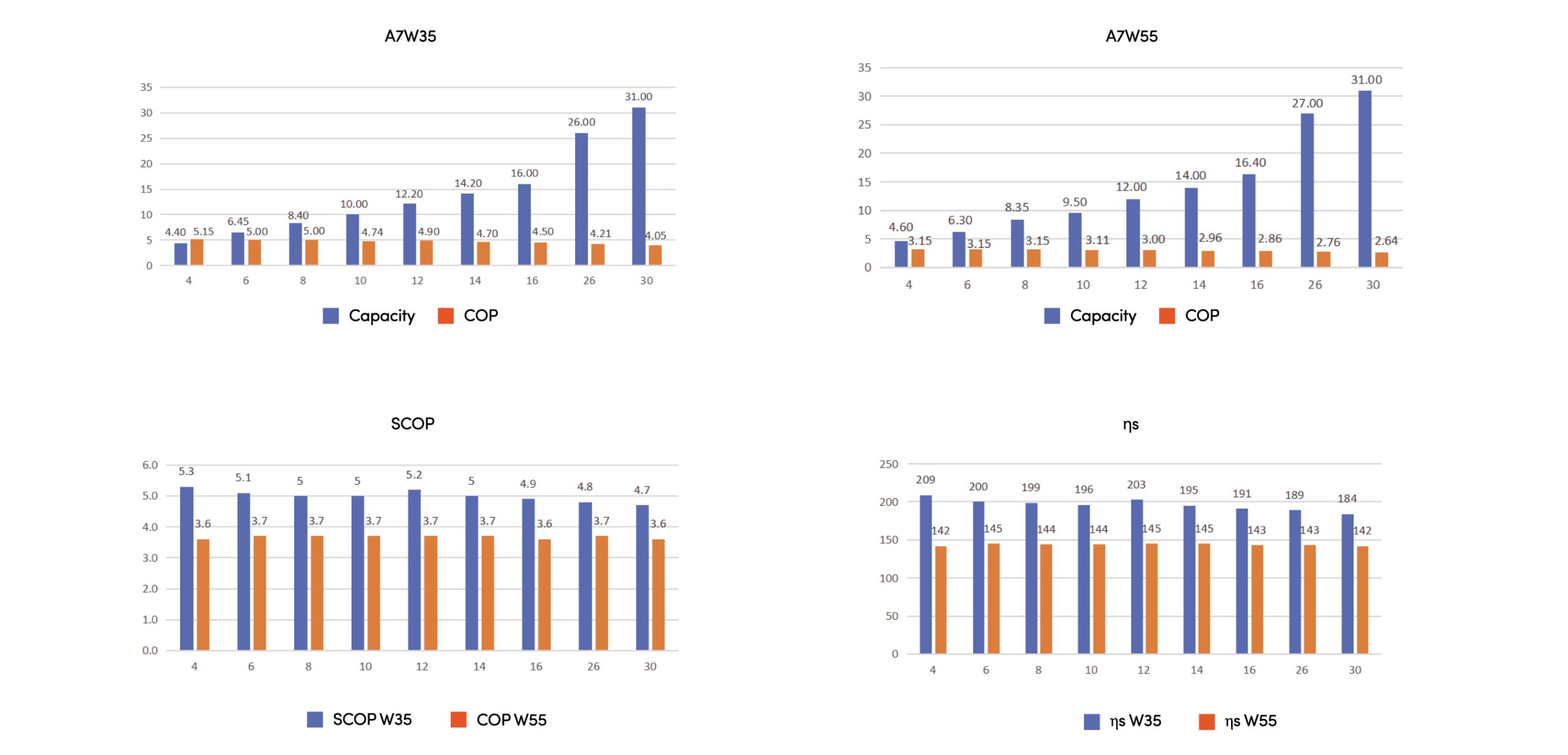

| Heating1 | Capacity | kW | 4.40 | 6.45 | 8.40 | 10.00 | 12.20 | 14.20 | 16.00 | 12.20 | 14.20 | 16.00 |
| Rated input | kW | 0.86 | 1.30 | 1.70 | 2.13 | 2.52 | 3.05 | 3.60 | 2.52 | 3.05 | 3.60 | |
| COP | / | 5.10 | 4.95 | 4.95 | 4.69 | 4.85 | 4.65 | 4.45 | 4.85 | 4.65 | 4.45 | |
| Heating2 | Capacity | kW | 4.60 | 6.65 | 8.55 | 10.20 | 12.40 | 14.60 | 16.40 | 12.40 | 14.60 | 16.40 |
| Rated input | kW | 1.19 | 1.75 | 2.26 | 2.79 | 3.40 | 4.06 | 4.75 | 3.40 | 4.06 | 4.75 | |
| COP | / | 3.85 | 3.80 | 3.78 | 3.65 | 3.65 | 3.60 | 3.45 | 3.65 | 3.60 | 3.45 | |
| Heating3 | Capacity | kW | 4.60 | 6.30 | 8.35 | 9.50 | 12.00 | 14.00 | 16.40 | 12.00 | 14.00 | 16.40 |
| Rated input | kW | 1.48 | 2.03 | 2.69 | 3.10 | 4.07 | 4.81 | 5.84 | 4.07 | 4.81 | 5.84 | |
| COP | / | 3.10 | 3.10 | 3.10 | 3.06 | 2.95 | 2.91 | 2.81 | 2.95 | 2.91 | 2.81 | |
| Cooling4 | Capacity | kW | 4.60 | 6.50 | 8.40 | 10.00 | 12.20 | 14.00 | 15.40 | 12.20 | 14.00 | 15.40 |
| Rated input | kW | 0.86 | 1.26 | 1.81 | 2.38 | 2.68 | 3.26 | 3.71 | 2.68 | 3.26 | 3.71 | |
| EER | / | 5.35 | 5.15 | 4.65 | 4.20 | 4.55 | 4.30 | 4.15 | 4.55 | 4.30 | 4.15 | |
| Cooling5 | Capacity | kW | 4.70 | 5.60 | 7.50 | 9.00 | 11.80 | 13.40 | 14.00 | 11.80 | 13.40 | 14.00 |
| Rated input | kW | 1.38 | 1.72 | 2.40 | 3.10 | 3.87 | 4.70 | 5.00 | 3.87 | 4.70 | 5.00 | |
| EER | / | 3.40 | 3.25 | 3.13 | 2.90 | 3.05 | 2.85 | 2.80 | 3.05 | 2.85 | 2.80 | |

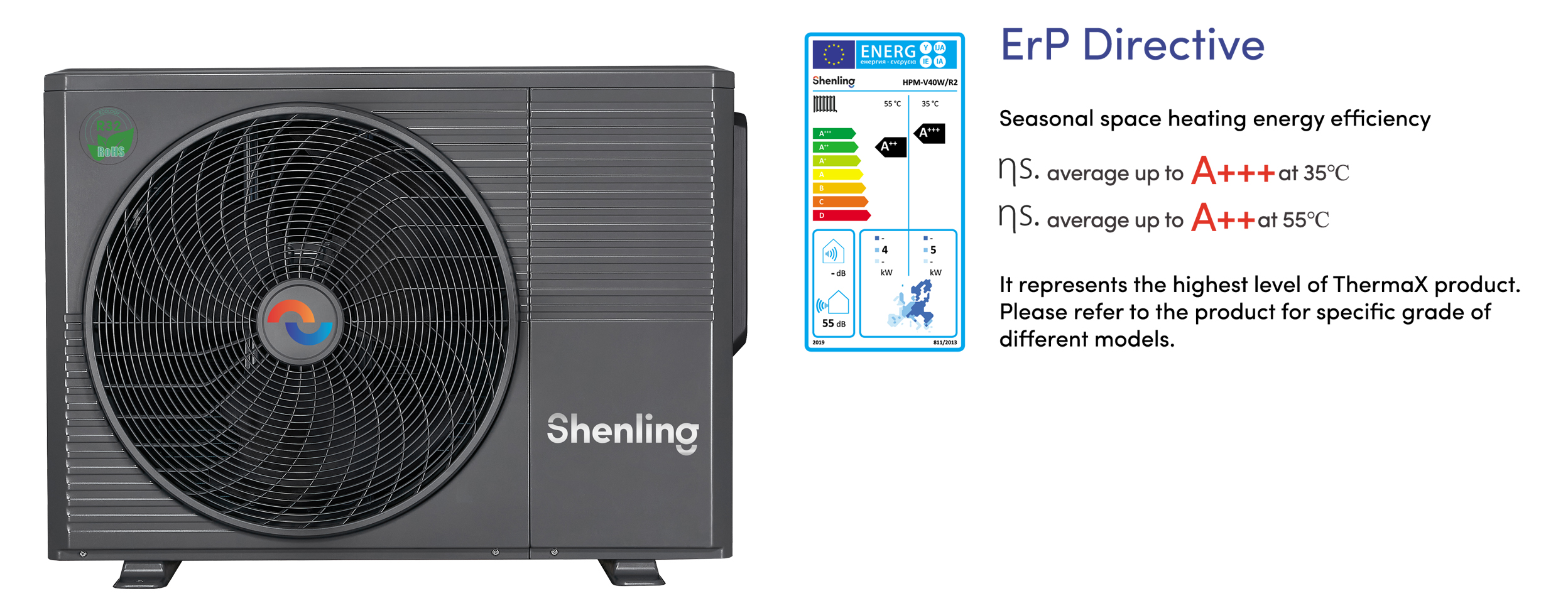

| Seasonal space heating efficiency6 | Average climate 35℃ | Class | A+++ | |||||||||
| Average climate 55℃ | Class | A++ | ||||||||||
| Refrigerant | Type(GWP) | / | R32(675) | |||||||||
| Charged volume | kg | 1.5 | 1.6 | 1.84 | ||||||||
| Sound power level7 | dB(A) | 60 | 63 | 65 | 66 | 68 | 69 | 70 | 68 | 69 | 70 | |
| Net weight/Gross weight | kg | 57/69 | 62/74 | 95/107 | 102/114 | |||||||
| Net dimension(W×D×H) | mm | 1040*450*725 | 1120*520*857 | |||||||||
| Gross dimension(W×D×H) | mm | 1110*475*870 | 1180*560*1005 | |||||||||
| Container loading quantity(40HQ) | sets | 100(ODU+IDU) | 70(ODU+IDU) | |||||||||
| Connection diameter | Refrigerant liquid | mm | 6.35 | 9.52 | ||||||||
| Refrigerant gas | mm | 15.88 | 15.88 | |||||||||
| Between indoor and outdoor unit | Height difference | m | ≤20 | |||||||||
| Pipe length | m | 2-30 | ||||||||||
| Max. pipe length w/o additioinal refrigerant | m | 15 | ||||||||||
| Additional refrigerant charge | g/m | 20 | 38 | |||||||||

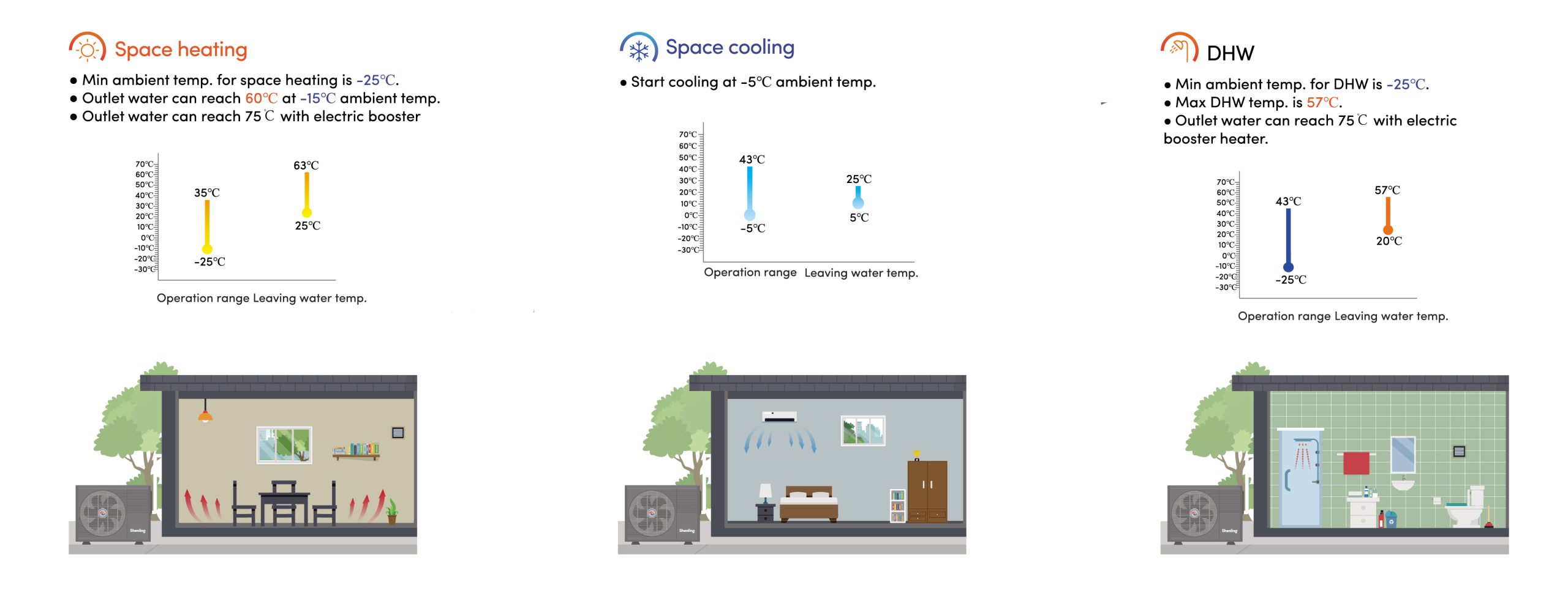

| Operation range | Heating | ℃ | -25～35 | |||||||||
| Cooling | ℃ | -5～43 | ||||||||||
| Domestic hot water | ℃ | -25～43 | ||||||||||
| Notes： 1. Outdoor air temperature 7℃ DB, 6℃ WB; entering water temperature 30℃, leaving water temperature 35℃; 2. Outdoor air temperature 7℃ DB, 6℃ WB; entering water temperature 40℃, leaving water temperature 45℃; 3. Outdoor air temperature 7℃ DB, 6℃ WB; entering water temperature 47℃, leaving water temperature 55℃; 4. Outdoor air temperature 35℃ DB; entering water temperature 23℃, leaving water temperature 18℃; 5. Outdoor air temperature 35℃ DB; entering water temperature 12℃, leaving water temperature 7℃; 6. Seasonal space heating energy efficiency class tested in average climate. 7. Testing standard: EN12102-1. 8. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014. | ||||||||||||
| Shenling ThermaX split heat pump specification (indoor unit) | ||||||||||||
| Hydraulic box model | HM-60/DR2 | HM-100/DR2 | HM-160/DR2 | HM-160/DSR2 | ||||||||
| Power supply | V/Ph/Hz | 220-240/1/50 | 380-415/3/50 | |||||||||
| Sound power level1 | dB(A) | 40 | 42 | 43 | 43 | |||||||
| Net weight/Gross weight | kg | 37/43 | 37/43 | 39/45 | 39/45 | |||||||
| Net dimension(W×H×D) | mm | 420×790×275 | ||||||||||
| Gross dimension(W×D×H) | mm | 525×1050×360 | ||||||||||
| Water pump | Type | / | DC inverter | |||||||||
| Max. pump head | m | 9 | ||||||||||
| Connection diameter | Water side | inch | R1″ | |||||||||
| Refrigerant liquid | mm | 6.35 | 9.52 | |||||||||
| Refrigerant gas | mm | 15.88 | 15.88 | |||||||||
| Electric booster heater | Capacity option | kW | 3 | 3 | 3 | 9 | ||||||
| Capacity steps | / | 1 | 1 | 1 | 3 | |||||||
| Outlet water temp. setting range | Heating | ℃ | 25～63 | |||||||||
| Cooling | ℃ | 5～25 | ||||||||||
| Domestic hot water | ℃ | 20～60 | ||||||||||
| Notes： 1. Testing standard: EN12102-1. 2. Relevant EU standards and legislation: EN14511; EN14825; EN50564; EN12102; (EU) No 811/2013; (EU) No 813/2013; OJ 2014/C 207/02:2014. | ||||||||||||
