Optimizing Energy Efficiency with Helium Leak Detection in Shenling Heat Pumps Manufacturing

  • Blog

As we all know, heating and cooling systems constitute the largest portion of energy consumption at homes worldwide. However, heat pumps offer an efficient, sustainable, and progressively cost-effective substitute for conventional fossil fuels, such as oil and gas, in the effort to decarbonize the heating industry. These systems are pivotal in advancing the clean energy transition and achieving the EU’s carbon neutrality goal by 2050. Hence, is the high-efficiency and environmentally friendly heat pump safe and reliable? How does it prevent industrial leakage issues during production? Following, this article will provide a detailed introduction to two sectors. They are helium leak testing in heat pump manufacturing and the advantages of helium in leak detection to uncover the secret of Shelning heat pump production.


What is helium leak testing in heat pump manufacturing?

Whether for residential, commercial, or industrial applications, heat pumps require stringent leak testing to meet demands for product longevity, efficiency, and adherence to environmental standards. Accurate leak detection during manufacturing and operation is crucial to prevent refrigerant loss, which can compromise performance and increase energy consumption.

Refrigerants such as R32, R290, and R410a are essential for heating the condenser in HVAC/R systems, including heat pumps. However, when these gases escape, they can have a significantly impact on the environment. In addition, certain refrigerants are flammable, posing safety issues, and gas losses diminish heating efficiency, resulting in greater operational expenses.

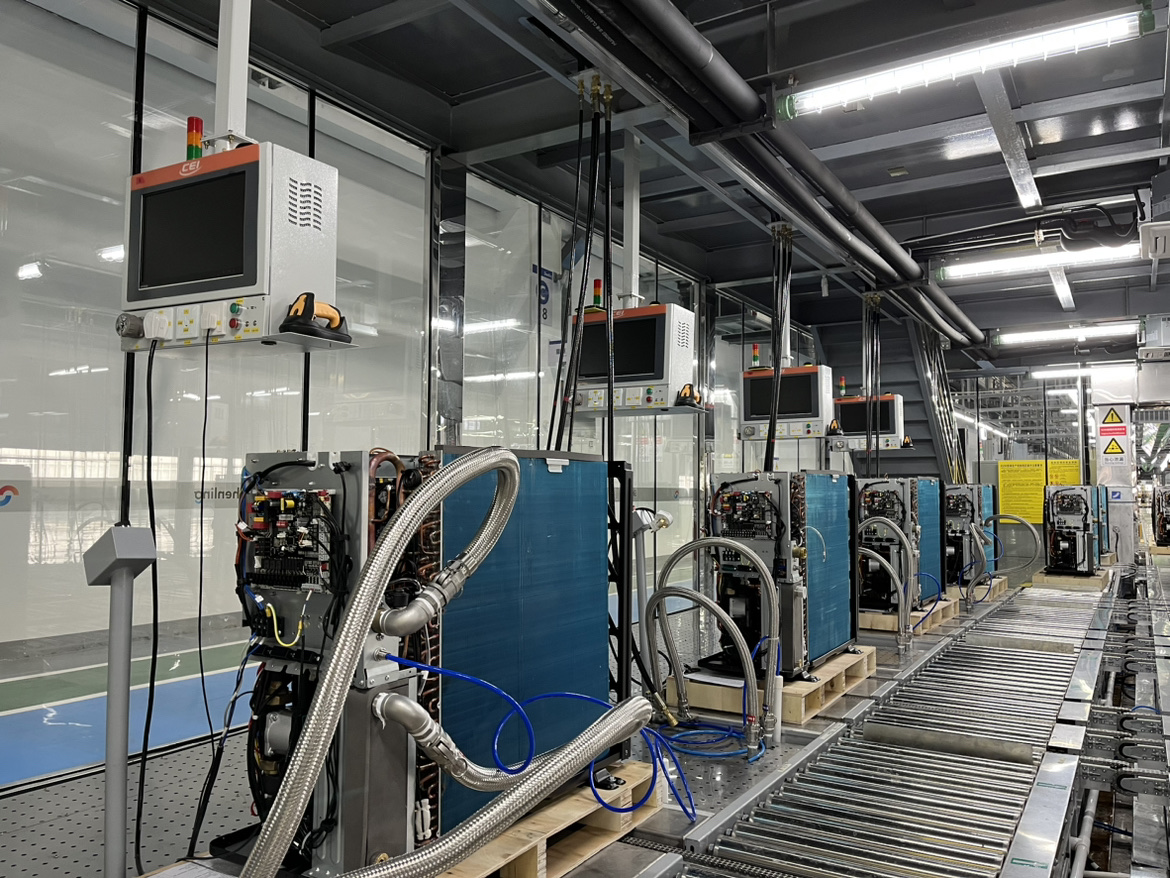

Helium Leak Testing Room

Shenling Helium Leak Testing Room


Preventing leaks not only maintains the optimal performance of heat pumps but also ensures long-lasting operation. Efficient heat transfer is key to the functionality of these systems, and any leaks can undermine their effectiveness, necessitating costly repairs or replacements.


Helium leak testing is an advanced method used to detect both small and large leaks in heat pump assemblies. Helium serves as a tracer gas, and its concentration is measured to identify leaks accurately. This method is particularly suited for heat pump components like compressors, heat exchangers, and pipes, which must meet strict leak rate criteria to ensure system longevity.


Shenling employs helium detection for precise leakage checking, ensuring their heat pumps are of the highest quality and security. This modern approach surpasses traditional methods such as pressurizing systems with air and bubble testing, which had limitations in sensitivity and repeatability. Helium leak testing provides highly selective and repeatable results, making it the industry standard. This dry, temperature-independent, and non-destructive method is now widely adopted in heat pump manufacturing process.


Shenling Helium Leak Testing Room

Shenling Helium Leak Testing Room


Benefits of Helium in Leak Detection

Helium is an ideal test gas for several reasons:

  1. Low Background Concentration: Helium constitutes only about 5ppm in atmospheric air, allowing for precise detection.
  2. Smallest Gas Atom: Aside from hydrogen, helium’s small atomic size makes it ideal for leak detection.
  3. Inert Nature: Helium does not react with other substances, ensuring stable and accurate measurements.
  4. Environmental Safety: Helium is non-toxic, non-flammable, and non-explosive, posing minimal risk to human safety and the environment.
  5. Non-Condensable: Helium remains in a gaseous state across technical applications, facilitating reliable leak detection.
  6. Light Weight: Helium is lighter than air, aiding in the detection process as it rises and escapes from leaks.


Helium’s properties make it highly effective for sensitive leak testing in vacuum systems and ensure accurate, repeatable results. Its widespread availability and reasonable cost further enhance its suitability for industrial applications.


In contemporary heat pump manufacturing, individual components undergo rigorous helium leak testing within vacuum chambers before final assembly. This guarantees the quality of each part, although at later phases of production, additional manual testing could be needed to identify precise leak locations.


Once assembled, the heat pump system is filled with refrigerant, and to make sure there are no leaks before it is operated, the last few connections are checked using a helium leak detector. This comprehensive testing approach minimizes potential issues and ensures high performance and longevity of the heat pumps.


By leveraging helium for precise leak detection, manufacturers like Shenling ensure that their heat pumps provide cost-effective, efficient, and environmentally friendly heating solutions, propelling the world’s shift towards sustainable energy consumption.
